2.7 Ton Mini Excavators

Product Description

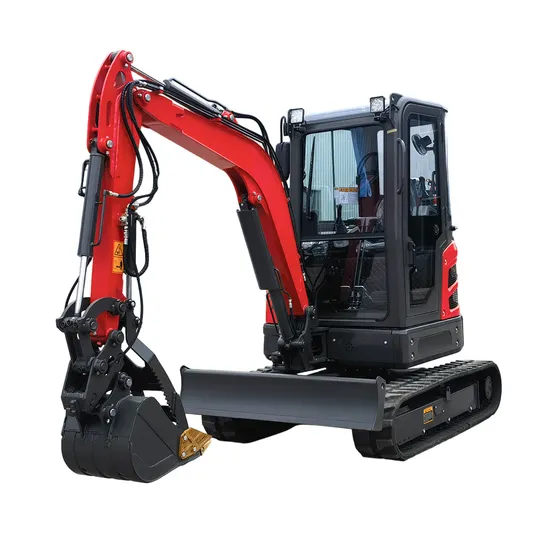

Best price 2.2ton digging used machine mini crawler excavator for sale

Excavator main features: --The SC22 crawler excavator is equipped with china Laidong engine , famous brand main pump and valves, EATON brand driving motor and slewing motor, powerful and reliable
--Compact design with 1300mm width, very smart in narrow working space,

--360° slewing, big boom swing angle, left 75°, right 45°, makes it efficient and high working output.

--Hydraulic pilot servo operation system, easy and smooth operating.

--Rubber/Steel track available for different working/tracking conditions.

--Closed cabin optional offer biggest operating comfort for all weathers
Excavator technical data:

ENGINE
Make	LAIDONG
Model	3TE30
Power /Rotation speed	22.1kw(30HP)@2350rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	3.5km/h
Width of track shoe(Rubber &steel track)	250mm
Number of track shoe per side(steel track only)	38pcs
Number of upper roller per side	0
Number of bottom roller per side	4
PERFORMANCE PARAMETER
Standard Bucket capacity	0.1m³
Swing speed	12rpm
Maximum Grade ability	30°
Maximum Bucket digging force	13.3KN
Maximum Arm digging force	9.3KN
Hydraulic system pressure	20Mpa
Machine weight	2200kg
MACHINE SIZE
Overall dimension (L*W*H)	4080mm*1300mm*2280mm
Axle base(Track length on ground)	1260mm
Track gauge	1050mm
Minimum Ground clearance	230mm
Swing radius at tail	1180mm
WORKING RANGE
Maximum Digging height	3700mm
Maximum Dumping height	2290mm
Maximum Digging depth	2450mm
Maximum Vertical digging depth	2280mm
Maximum Digging radius	4370mm
Minimum swing radius	2015mm
Maximum Lifting height of blade	240mm
Maximum Cutting depth of blade	310mm
Boom swing angle(Left)	70°
Boom swing angle(Right)	50°

Excavator attachments:
Excavator warranty:
Many different models are available:

1.8ton crawler excavator	2ton crawler excavator	2.2ton crawler excavator
6.5ton crawler excavator	7.5ton crawler excavator	9ton crawer excavator
13.5ton crawler excavator	18ton crawler excavator	23ton crawler excavator
7ton wheel excavator	8.5ton wheel excavator	13.5ton wheel excavator
