Hanbs Swiss Type CNC Lathe with Double Spindle and Double Blade Row in High Processing Speed and Speed

Product Description

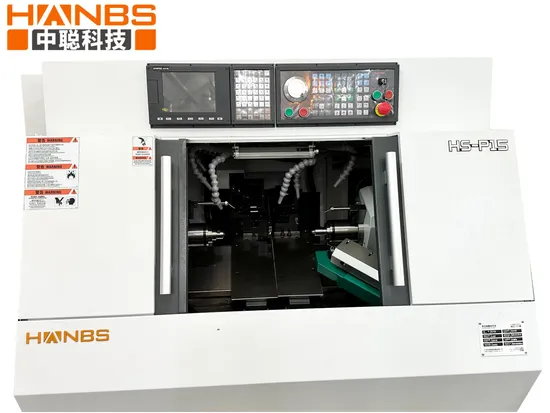

HANBS Swiss Type CNC Lathe with Double Spindle and Double Blade Row in High Processing Speed and Speed
Product Advantage
Lathe machine is mainly used for component processing, and swing machine relies on the axial movement of the spindle clamping material for turning and milling to obtain the components you need.

CNC Lathe can customize the configuration of our machine according to your needs, making it more convenient for you to use.

Our Swiss Lathe machine has been CE certified, and the geometric accuracy of the machine tool is in accordance with the factory standards and the Chinese General Rules for Metal Cutting Machine Tools GB/T1742.1-1998 (International ISO230-1-96).

CNC Lathe provides machine tool user manual, programming manual, machine tool layout plan, programming manual for CNC system, and provides machine tool factory certificate and geometric accuracy testing report.

CNC Automatic Lathe Machine can be used in eight scenarios: New energy vehicles, medical treatment, Communication accessories, Household appliances, Electronic appliances, Precision component processing, hydraulic pressure, Pneumatics.

Technical Parameters

Processing parameters	Maximum processing diameter	φ26mm
	Maximum machining length 2.5D	50mm
	Maximum axial drilling diameter	M10mm
	Maximum axial tapping size	M8
	Max. spindle speed (short time)	10000rpm
	Max. back spindle speed (short time)	12000rpm
	Max. workpiece removal length	40mm
Maximum stroke	X1 axis	375mm
	Z1 axis	180mm
	X2 axis	375mm
	Z2 axis	180mm
Cutting tool	Size of cutter plate	390mm
	Maximum number of tools	8
	Tool (turning tool)	φ16X16
	Sleeve	φ25
	Height from tool plate holder to spindle centre	45mm
Collet	Spindle collet	HB26
	Back spindle chuck	HB26
Feed rate	X1/X2 axis feed rate	15m/min
	Z1/Z2 axis feed speed	15m/min
Motor	Spindle drive power	2.5/3.7KW
	Back-axis drive power	1.5/2.5KW
	X1 X2 Z1 Z2 power	1.1KW
	Cutting oil	0.4KW
Other	Spindle centre height	1010mm
	Air pressure flow	0.7mpa 0.5m3/min
	Main breaker capacity	40A
	Input power	5.4KW
	Weight	2700Kg
	Dimension	1950X1455X1700mm

Product Uses

The following are four specific application scenarios of NCN Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.
Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!
Q3. Can you give the favourable price?
A. We have different series machine,but we can recomand you machine according to your products and the quote favourable price for you.
Q4.Can you provide some certificate?
A. We can provide certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is46 mm.Mini processing daimeter is 3mm.And you can see the above picture about the samples.
Q6.How will the machine be transported?
A.We transport machine by sea.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.

---
