Kc228 Cone to Hank Winder Thread Cone Winding Machine Electric Yarn Winder

Product Description

Product Description

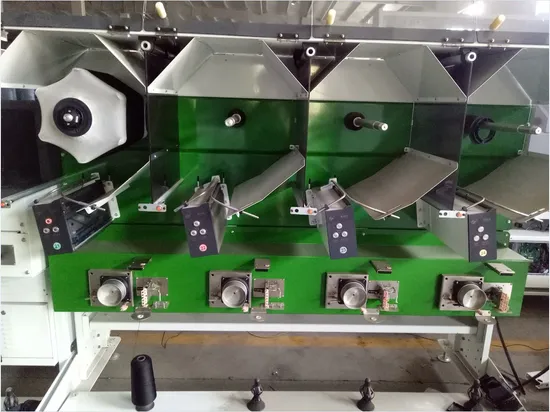

KC228 Semi Automatic High Speed Precision Cone To Hank/Skein Winding Machine
Suitable for precision forming of elastic chemical fibers, like polyester, nylon and so on; especially for precision winding of fine denier yarns.
Features
A. Adoption of electronic yarn guide forming system, forming length is adjustable electronically and the uniformity of forming density for reeled yarns can be guaranteed;
B. Adoption of digital programmable intelligent control, yarns can be wound at a high speed and packages are precisely formed at the same time;
C. Intelligent constant tension system and automatic tracking system of over feeding can be chosen, so that the stability of yarn package winding can be guaranteed;
D. Equipped with individual position control, yarns can be loaded and unloaded freely. It is convenient to operate with reasonable transmission, compact structure, and beautiful appearance;
E. Each spindle of the whole machine is driven by independent brushless DC motor. Productivity is improved, power consumption is reduced at the same time, more than 30% power is saved as compared to similar machines.


Product Parameters

Machine structure	single side, single layer, 4 spindles per section
Number of spindle	40 spindles/set
Traverse length	130mm~250mm (It can be changed according to actual situation)
Rated power	300W/spindle
Drive	single motor drive

KC228: intelligent setting for winding density ;
Spindle gauge: 500mm;
Type of winding: precision winding;
Linear speed: up to 1600m/min ( depend on the process parameters );
It is designed as the same winding technology as European Brands but was developed and programmed by ourselves. The functions of our machines are identical with European Brands and our technology ensures well controlled winding. And some of our spare parts is compatible to European Brands, such as guiding motor, sensor and angle transducer.

After Sales Service
For demo machine set:
spindles +Independent Machine headstock
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory;
Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.

---
