Product Details
Product Description
Product Description
Max. Rotation Dia: Φ530mm
Max. Turning Dia: Φ460mm
Max. Dia Machining On The Tool Holder: Φ280mm
Max. Turning Length: 500mm
Bar Capacity: Φ52
Spindle Head Type: A2--6
Max. Spindle Speed: 3500rpm
Worktable Dimensions: 270*500mm
X/Z Rapid Speed: X--Axis: 24m/min | Z--Axis: 24m/min
Positioning Accuracy: +-0.008/300mm
Repeatability: +-0.005/300mm
Turret Type: 12T Servo Turret
External Diameter Tool Holder: 25*25mm
Dia. Of Tailstock Sleeve: Φ80mm
Travel Of Tailstock Sleeve: 80mm
Taper Hole Of Tailstock Sleeve: Morse 5#
Machine Tool Dimensions: 2650*1950*1800mm
Machine Tool Weight: 3700Kg
Torque: Customizable configuration
Drilling Capacity: Customizable configuration
Voltage: 380V
Frequency: 50/60 Hz
Phase Type: 3--Phase Electricity
Color: Black
Usage/Application: Graphite Processing|Carbon Fiber Processing|Ceramic Processing|Composite Material Processing
Can it be customized: Supports customization
Guarantee: One year warranty for the whole machine
Brand: ShangshanJingji

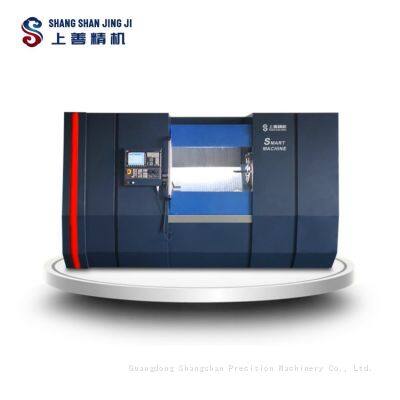

Our Graphite processing CNC lathe is engineered for precision and versatility, designed to handle the unique challenges of working with graphite materials. Whether you're machining small or large graphite components, this lathe provides exceptional accuracy and smooth operation. Ideal for a range of applications, the machine offers efficient and cost-effective solutions for industries such as electronics, automotive, and mold making. For manufacturers involved in the production of battery graphite electrodes, we also provide advanced battery graphite electrode processing equipment, which ensures the highest level of precision when creating components used in energy storage and power systems. The integration of high-speed, automated processes in our CNC graphite processing machine enhances productivity, making it an indispensable tool for anyone involved in graphite material handling and machining. Additionally, the Graphite CNC machining center is another advanced option that offers improved efficiency and accuracy, making it an ideal choice for those looking to take their graphite processing capabilities to the next level.
In addition to these machining solutions, we also offer the Graphite engraving machine, which is specifically designed to meet the demands of fine engraving on graphite materials. Whether you are working with intricate patterns or detailed designs, this engraving machine provides exceptional detail and smooth finishes. To ensure the longevity and reliability of the engraving process, we incorporate high-quality Graphite copper sleeves for engraving machines, which reduce wear and tear, thereby extending the life of your machine. Whether for industrial, commercial, or scientific purposes, our suite of machines offers the tools needed to handle graphite processing with precision and efficiency, enabling users to achieve superior results in every project.
>>
