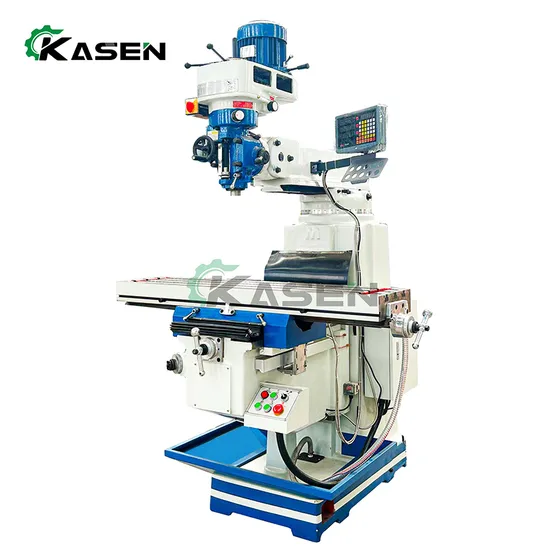

Metal Universal Horizontal and Vertical Turret Milling Machine X6330 5hw

Product Description

Metal Universal Horizontal and Vertical Turret Milling Machine X6330 5hw
Product Description
The main performance characteristics: 1. The use of the moment type of rail steel is good, strong stability 2. High frequency quenching of working table and guide surface 3. Working table Y, X are both gear drive automatic feed, Z for electric lift 4. X5036B - type slider (1200mm) to make the work of the working table longer, better stability 5. B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
Specification

Specifications	Units	X5036B	X5036B-1
Spindle taper		7: 24 IS050	7: 24 IS050
Distance between spindle nose and table	mm	60-540	60-540
Distance between spindle hole center and column surface	mm	325	325
Spindle speed	rpm	(12steps)60-1700	(12steps)60-1700
Table size	mm	1370x360	1500x360
Table travel	mm	700x320 (830x320)	1000x320
Motor power	kw	4/0.75/1.1/0.09	4/0.75/1.1/0.09
Overall dimensions(L*W*H)	mm	1700x 1680 x 1880	1900x 1680 x 1880
Net weight/Gross weight	kg	2200/2300	2300/2400

After Sales Service
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost


FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
