New Portable Concrete Pump and Concrete Mixers Diesel Concrete Mixer Pump for House Building Use

Product Description

Product Description

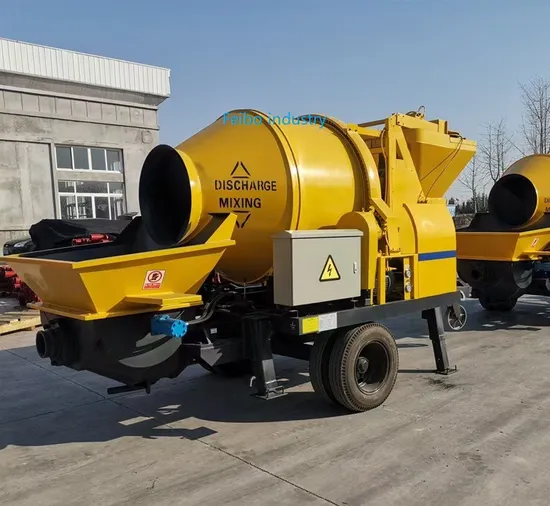

Diesel mixing integrated conveying pump
Concrete mixing and pumping integrated machine is a small concrete conveying pump that adopts a fully automated construction operation system, integrating feeding, mixing, and high-pressure pumping;
It can achieve on-site mixing and continuous pumping, greatly improving construction efficiency.
Suit for:
1,Transporting large aggregate concrete such as foundation pile driving, including rural civil construction, township and new rural construction;
2,various tunnel constructions such as highways and railways;
3,Water conservancy and hydropower engineering; Geological hazard slope management;
4,Construction characteristics such as large concrete pouring volume or narrow space for basic irrigation
Product Parameters

Project	Parameter	Project	Parameter
Pump model	JBS40-12-84R	conveying cylinder diameter x stroke	Ф180×1000mm
Theoretical concrete conveying capacity	45 m³/h	main cylinder diameter × stroke	Ф100×1000mm
Theoretical concrete mixer mixing amount	15-20 m³/h	Control mode	Remote control
Concrete mixer lift bucket volume	800L	Distribution valve form	S-valve
Concrete mixer feed capacity	650 L	Hydraulic oil circuit form	Open
Discharge capacity of concrete mixer	450 L	Lubrication system	Automatic lubrication
Engine power	84 kw	Pumping system oil pressure	32 Mpa
Engine brand (can Optional other brand like Deutz and Cummins)	Weifang Yuxing	Mixing system oil pressure	8 Mpa
Engine speed	2000r/min	Hydraulic tank volume	450 L
Concrete transfer pressure	12 Mpa	Allow concrete aggregate size	<40mm
Theoretical vertical height of concrete conveying	150 m	Discharge port inside diameter	Ф150mm
concrete conveying horizontal distance	600 m	Inside diameter of concrete conveying pipe	Ф125 mm
Equipment dimensions: length × width × height	5800×2200×2300 mm
Equipment weight	6000 kg

Packaging & Shipping


Company Profile
About us
The Feibo industry, a sourcing factory on construction machinery found in 2012, located in Hunan, Changsha city.
Have passed the ISO9001:2008, TSI16949 certificate ,CE , and so on.
Professional supply for mechanical equipment, Concrete pump, pump truck, fabric machine and some auto parts, accessories and so on, for more than 10 years.
Strict QC team over 10 members, covering whole stages of production running.

SPARE PARTS
Certifications

Our Advantages
FAQ
1. who are we?We are based in Hunan, China, start from 2012,sell to North America(15.00%),Southeast Asia(14.00%),Mid East(13.00%),South America(12.00%),Africa(11.00%),Eastern Asia(10.00%),Eastern Europe(9.00%),Central America(9.00%),South Asia(3.00%),Northern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us? construction machine, concrete pumps, concrete pump truck, digging machine, used concrete pump truck, garden machine and so on4. why should you buy from us not from other suppliers?1. Strong production capacity: large-scale production. 2. Leading technology: Product performance and quality are competitive. 3. Rich experience: Provide professional solutions and customized products.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
