| US$1,345.00-2,000.00 | 1 Piece (MOQ) |

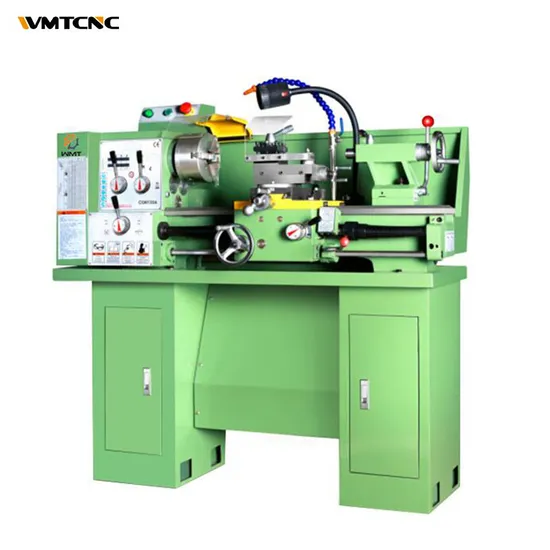

| Specification | Model CQ6133-550/750mm |
| Max. turning diameter over bed: | 330mm(12-3/5") |
| Max. swing over cross slide: | 220mm(8-11/16") |
| Max. length of work piece: | 550mm(23-3/5") / 750mm(36") |
| Width of bed | 160mm(6") |
| Spindle Taper and Bore: | MT5 / 38mm ( 1-1/2") |
| Max. lateral stroke over tool post | 160mm(6") |
| Metric pitches | 0.5-4 mm |
| Inch pitches | 9-40 T.P.I |
| Longitudinal-feed range | 0.135-1.80mm/r |
| Max. travel of tailstock sleeve | 70mm(2-3/4") |
| Tailstock sleeve taper | MT3 |
| Spindle speeds range | 60-1650r/min(50hz) |
| Motor | 1.1Kw |
| NW/GW (without stand) | 280/300Kg 320/340Kg |
| Packing size (without stand) | 133*76*72/155*76*72 cm |
| Packing size | 133*76*137/155*76*137 cm |
