| Negotiable | 5 Pieces (MOQ) |

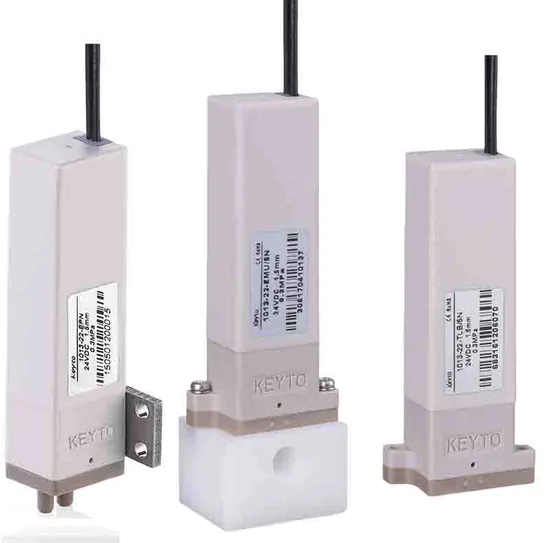

| Valve construction | Rocker type diaphragm valve | Direct-acting type diaphragm valve | ||
| Valve type | 2-way N.C. | 2-way N.O. | 3-way | 2-way N.C. |
| Number of ports | 2 | 2 | 3 | 2 |
| Orifice diameter | 1.5mm | |||
| Flow CV | 0.03 | 0.018 | ||
| Mediums | Water, Air, Weak Acids, Weak Alkalis (specific withstand medium is determined by the solenoid valve diaphragm and valve cover) | Strong Acids, Strong Alkalis, High-temperature Fluids, Air, Organic Solvents, etc. | ||
| Ambient temperature | 5ºC~40ºC | |||
| Operating pressure range | -75kpa~250kpa | -70kpa~200kpa | ||
| Proof pressure | 0.3MPa | |||
| Leakage rate | 0 (at water pressure) | |||
| Response time | Standard type: <50ms Low power type: <20ms | <30ms | ||
| Rated voltage | DC: 24V/12V | |||
| Allowable voltage fluctuation | ±10 % of rated voltage | |||
| Power | Standard type: 24V 2.8W, 12V 3.4W Low power type: 1.8W | |||
| Power saving circuit | Power consumption after the external connection is about 0.8W (optional) | / | ||
| Type of coil insulation | Class F | |||
