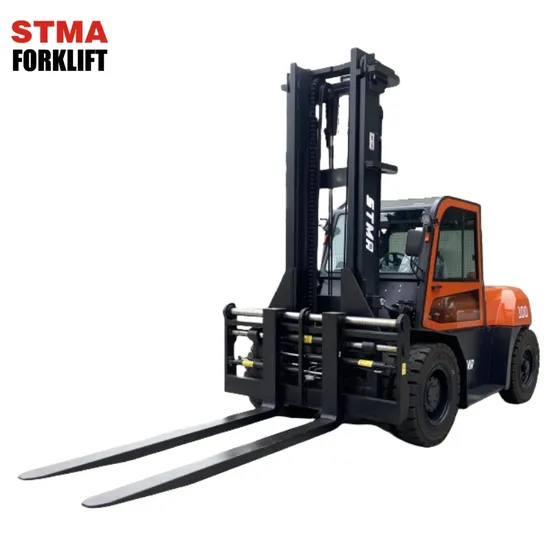

Stma Fast Shipping 10tn 10000kg Diesel Forklift with 2-Stage 4.5m Lifting Height

Product Description

Product Description STMA fast shipping 10tn 10000kg diesel forklift with 2-stage 4.5m lifting height
10t forklift
Features of 10ton fork lift
1. longer time warranty: 12 months or 2000 hours (engine, transmission, drive axle, etc) / 18 months or 2000 working hours (other spare parts);
2.package:sea protecting package with film not nude wether by container or not;
3.quality is strong with good steel body frame, brand component, technology is mature;
4.suitable design that the length size of forklift is longer because of the suitable driving space;
5.lower price compare the same machines;
6.service is satisfied with our after-sales team and engineering team. Detailed Photos Details:
Product Parameters Specifications of forklift truck

Manufacturer				STMA
1	Model			FD100T	FD120T
2	Power Type			Diesel	Diesel
3	Rated Capacity		kg	10000	12000
4	Load Centre		mm	600	600
5	Lift Height		mm	3000	3000
6	Fork Size (L×W×T )		mm	1520×175×80	1520×175×80
7	Mast Tilt Angle (F/R)		Deg	6°/12°	6°/12°
8	Front Overhang (Wheel center to fork face)		mm	750	750
9	Ground Clearance(Bottom of mast)		mm	250	250
10	Turning Radius (outside)		mm	3950	3950
11	Min. Intersecting aisle		mm	3590	3590
12	Max.Gradeability (No load/Full load)		%	20	20
13	Wheelbase		mm	2800	2800
14	Service weight		kg	12500	13300
15	Battery (Voltage/Capacity)		V/Ah	(12/80)x2	(12/80)x2
16	Length to face of fork(Without fork)		mm	4260	4380
17	Overall Width		mm	2180	2180
18	Mast Lowered Height		mm	2850	2850
19	Mast Extended Height(With backrest)		mm	4330	4330
20	Overhead Guard Height		mm	2580	2580
21	Travel (No load)		km/h	26	26
22	Lifting(Full load)		mm/s	310	310
23	Front		mm	9.00-20-14PR	10.00-20-14PR
24	Rear		mm	9.00-20-14PR	10.00-20-14PR
25	Model			6102	6102
26	Manufacture			Chaochai	Chaochai
27	Rated output/r.p.m.		kw/rpm	81/2500	81/2500
28	Rated torque/r.p.m.		n.m/rpm	353/1650	353/1650
29	No.of Cylinder			6	6
30	Displacement		L	5.795	5.795
31	Fuel Tank Capacity		L	140	140

Packaging & Shipping Company Profile STMA Industrial(Xiamen) Co.,Ltd is a national high-tech enterprise specializing in the research development, production, sales and service of storage equipment and intelligent industrial vehicles, the company is located in a beautiful coastal city XIAMEN in China, It has advanced forklift manufacturing technology, perfect processing equipment and product testing center, and is a member of china industrial Vehicle Association, it has passed the safety production standardization, ISO9001 international quality system certification and EU CE certification, and has obtained nearly 50+ national invention patents, the main products are counterbalanced forklift truck(diesel forklift, gasoline forklift, electric forklift) and electric storage equipment such as pallet truck, stacker, reach truck, etc, are widely used in fields such as: automobiles, chemicals, products, electric applications, papermakig, medicine, beverages, clothing, logistics, e-commerce, and airport terminals.
Our company inherits the enterprise tenet of "honesty, customer first, quality first, timely delivery, service, whole staff participating, ceaseless improvement and pursuing excellence", and constantly develop new products to meet market demands, professional, high-quality, pioneering and energetic team, with a full range of skills, good reputation and professional ethics, to provide customers with comprehensive personalized service.
After Sales Service 7*24HOURS SERVICE
******
Pre-Sales Service:
-- Inquiry and consulting support.
-- OEM Service available
-- Visit to our factory.
-- Photos&Videos for your order before shipment.
After-Sales Service
-- 1 year or 2000 working hours (which occurs first) period quality warranty , during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
-- Spare parts: STMA is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
FAQ Q.What's the Certificate do you have?
A. STMA forklift meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
Q. What are our advantages compared with other manufactures/factories?
A.1) Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves, always adapting the best materials
A.2) Fast Delivery: Generally, we can delivery within 10 working days in factory after receiving pre-payment from customers.
Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
Q. Can we provide OEM SERVICE?
A. STMA can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

---
