Interference-Free Smart Touchscreen Microphone Discussion and Voting Wireless Conference System

Product Description

Product Overview

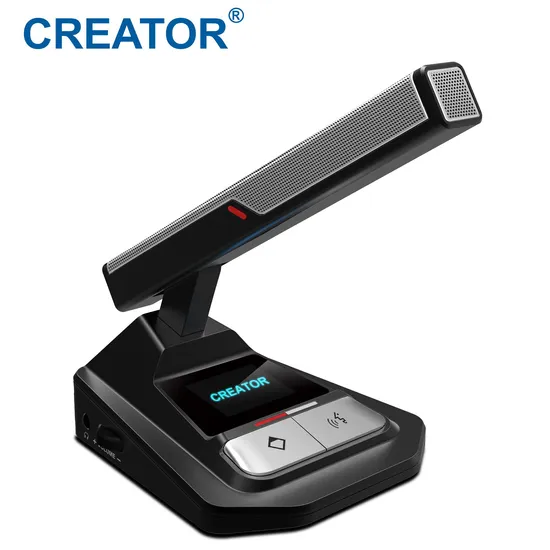

CR-DIG5202/04K2 wireless conference microphone adopts short-stem design, owns supersensive sound quality, high fidelity, zero delay and strong anti-jamming ability. Its front multi-functional touch screen provides check-in, voting and clocks, etc., easy to satisfy any conference demand.

Features
· Equipped with a 2.0-inch OLED HD touchscreen, supports three ways of voting.
A)Voting mode: yes/abstain/no.
B)Election/survey: 1/2/3/4/5.
C)Response/review: --/-/0//plus.
· High performance battery, 9 hours working time, 13 hours standby time.
· WiFi encryption transmission, discussion free from unauthorized interception and interference.
· Non compressed audio transmission technology, sampling rate of 48K, 20Hz-20KHz bandwidth, perfect sound.
· Low-delay audio transmission, output minimum delay from microphone to speaker is less than 5 ms.
· Ergonomic design panel buttons, user-friendly conference discussion operation.
· Work with CREATOR HD camera tracking system, support preset and mobile camera tracking.
· Dual mesh design, microphones RJ45 hand in hand connection.
· 3.5 mm headphone jack and volume adjustment knob.

Specifications

Model No.	CR-DIG5202/04K2
Frequency Response	20Hz-20KHz
WiFi Standard	IEEE Draft 2.0 802.11n
Radio Frequency Range	4.900-5.850GHz
Transmitting Power	15dBm
Antenna Gain	2dBi
Power Supply	DC Power Input Supply (accessible after removing the battery)
Maximum Power Consumption	2.6W
Battery Capacity	3200mAh
Battery Output Voltage	7.2V
Continuous Speech Time	9 Hours
Static Standby Time	13 Hours
Charging Time	≤3 Hours
Earphone Jack	3.5mm (0.14 inches) Stereo Headphone Jack
Earphone Impedance	>32 Ohm <1K Ohm
Bottom	Basement for Pluggable Microphone
Color	Silver

System Diagram


Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.
United Nations Conference on Trade and Development
Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.
Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.

Honors & Certificates

---
