Automatic Spot UV Glazing Coating Machine and UV Coater Machine Vkd1050

Product Description

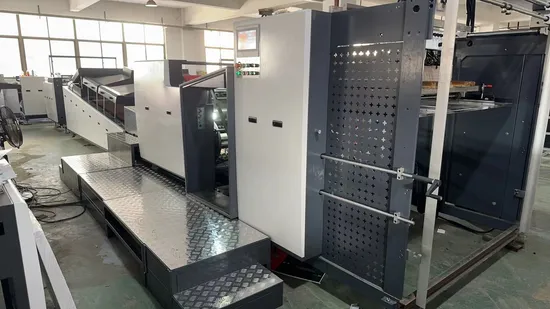

Automatic spot UV glazing coating machine and UV coater machine VKD1050
Applications:
The spot uv coating machine VKD-1050is a new coating equipment with excellent performance, which integrates the advanced technologies at home and abroad. It can both local and overall coating, and has the advantages of high working speed, high gloss, thin and uniform coating layer. It is widely used in packaging decoration, book cover and other printing materials.
Technical parameters
VKD1050 Automatic Spot UV coating Machine Basic Specification

Max.sheet size	730L* 1040Wmm (L*W)	1100L* 1450Wmm (L*W)
Min.sheet size	310 * 410mm (L*W)	310 * 410mm (L*W)
Max varnishing size:	720*1040mm (L*W)	1100*1450mm (L*W)
Speed	Up to 9000 sheet/hour(Vary with the material of paper).	Up to 9000 sheet/hour(Vary with the material of paper).
Sheet Thickness	80-600gsm depend on paper size and material	80-600gsm depend on paper size and material
Spot UV tolerance	+/-0.2mm	+/-0.2mm
UV coating thickness	0.15mm-0.6mm	0.15mm-0.6mm
Total Power	38 KW	45 KW
Dimension (L W H)	11000*2260*2100mmmm	11000*2260*2100mmmm
Weight	7000Kg	8000Kg

The whole machine has a one-key acceleration function. After the main machine accelerates, the oven, paper delivery, feeder, and metering roller will all change according to the speed of the main machine.
Use metering roller anilox roller to oil and then transfer to blanket.
1:Adopt high-speed offset press feeder (9000sheets/hour) to ensure fast and stable operation
2:Paper photoelectric control, automatic lifting
3:Double protection feeder lifting safety
4:Using the latest Pre-stacker design for Continuous paper feeding,greatly save paper time and reduce the labor intensity of operators.
Coating section(basic oil coating head)
1:The anilox roller is used for oil supply, and the weight of oil is uniform. 80-120 mesh. You can choose different types of oil to achieve 3-10 grams of coating oil per square meter.
2:The closed scraper is used to circulate the oil inside the oil circuit without outflow of oil, which can effectively reduce oil loss and volatilization.
3:The main machine uses offset press to feed paper in its teeth, and paper of different thicknesses can work smoothly.
4:Photoelectric automatically control pressing to prevent oil on the back when there is no paper.
5:The plate roller is engraved with a network cable for easy alignment during plate pasting.
IR Drying and UV Curing System
1:The length of the oven is 4300mm, which can effectively ensure the leveling and curing degree strength
2:Equipped with UV and IR systems, which are controlled separately and cannot be used at the same time.
3:18 IR lamps and 3 UV lamps, IR lamps generally have a life of 2 years, UV lamps have a life of 800~1000H, and transformers have a life of more than one year .
4:The UV part adopts 8KW adjustable electronic light source, which has greatly improved safety performance than the traditional voltage source light source.The light source can adjust the brightness automatically as the change of machine's running speed, which can be changed from 30% to 100%. Thus the average energy consumption is saved by more than 30%.
5:Emergency stop or overheat protection device, when the emergency stop or the temperature inside exceeds 150 degrees, the protective cover will automatically rise to dissipate heat to prevent fire
6:Equipped with a ventilation system, under the UV curing box, there is a strong suction device composed of an exhaust fan and a wind box, which can extract ozone, dissipate heat and make the paper not easy to curl in the furnace, but can pass smoothly.
7: Equipped with automatic correction system, (double correction, double over-limit protection). The paper conveying adopts the imported Teflonn conveyor belt, which can prevent ultraviolet rays, is strong and durable, does not support the paper, the electric eye detects the Teflonn conveyor belt, and the automatic homing correction device
8:The whole process of suction to ensure that the coating products will not float and do not pile up paper. The oven is equipped with iron wire protection to prevent the paper from floating on the paper and cause a fire.
Cooling system
After the paper dries out, it is quickly air-cooled to make the paper dry faster without anti-sticking.
Automatic delivery system
1:Paper photoelectric control, automatic lifting
2:Double protection feeder lifting safety
3:Equipped with pneumatic paper flap function, you can set the number and time of the paper beat to ensure neatness
4:Disorderly paper automatic lowering function

FAQ
1.What is VOKEDA TECHNOLOGY machine warranty?----one year.
2.Does your machine with CE certificate?----Yes.
3.What is the production time while placing order?----Arounding 5-10 days
4.What is the delivery time?----Within 5-10 days after got the payment.
5.Can VOKEDA TECHNOLOGY handle shipping for customers?----Yes.(Please provide us your requested destination port ,and we can check the shipping charge and arrange shipping for your order)
6.Does the package strong?----Yes, of course! All of our export package is enough strong with wooden case, all are confirmed with export packing standard.
7.How about after-sales service ?----my engineer can offer you traning for operating the machine .
8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.
9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.
10Do you have some machines in stock ?--- yes , we have .
11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.
12.What's the payment term?----T/T or western union

---
