Radial Drilling Machine Z3040X14/1 with CE

US$7,050.00
1-4 Pieces
US$7,000.00
5+ Pieces

Basic Info.

Model NO.
Z3040X14/1
Controlling Mode
Hydraulic
Number of Shaft
0
Hole Diameter
40mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Drilling Capacity
40mm
Power
Hydraulic
Spindle Taper
Mt4
Spindle Speed
80-1200rpm
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
HS Code
84592900
Production Capacity
50 Sets Monthly

Product Description


Main specificaiton for Radial drilling machine model Z3040X14/1
Specification Z3032×10/1 Z3040×13/1
Max . drilling diameter 32mm 40mm
Distance between spindle axis and column 300-1000mm 300-1300mm
Distance from spindle nose and working surface of base 250-1000mm 300-1120mm
Spindle travel 280mm 280mm
Spindle taper MT4 MT4
Range of spindle speeds 32-2500r/min 32-2500r/min
Number of spindle speeds 16 steps 16 steps
Range of spindle feeds 0.10-1.25mm/r 0.10-1.25mm/r
Number of spindle feeds 8 16
Table size 550×400mm×400mm 600×450mm×450mm
Distance of head horizontal movement 700mm 1000mm
Power of main motor 2.2kW 3kW
Net weight 1600kg 2500kg
Overall dimensions 1760X800X2300mm 2100×900×2490mm

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

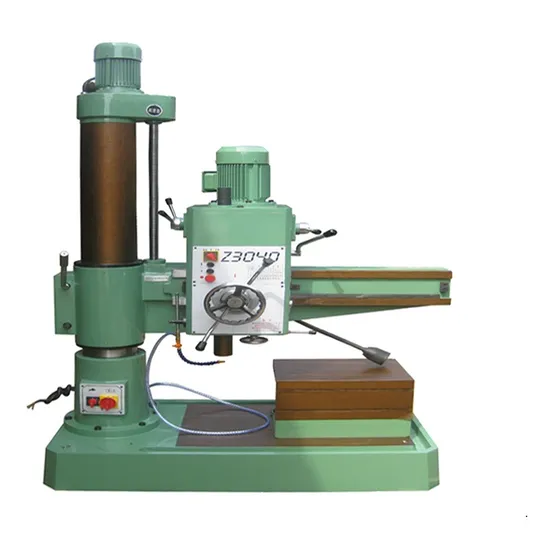

Detailed pics. for Z3040X14/1
