Recycle Waste Wooden Pulp System Copy Paper Jumbo Rolls Machinery

Product Description

Culture paper production line
The whole production line of culture paper machine includes boiler , paper pulping system, culture paper making machine and related machines.Usually, there are two kinds of paper pulping system.
1.if your raw materials are wood , bamboo, sugarcane bagasse etc, then it will need chemical pulping system. This chemical pulping system need more investment costs and highly advanced technical environment measures.It is suitable for large scale factories. This pulping system usually needs high speed fourdrinier paper making machine.
2.The other pulping system is recycled paper pulping system. Its raw materials could be used waste paper ,used books , magazines etc.Its paper making machine is cylinder machine.Its capacity is small scale. It is suitable for medium and small factories.
3.This production line can use the waste paper,wooden,bamboo as raw materials to produce the tissue paper jumbo rolls.It also can use the waste water recycling and reuse process and reduce the pollute.
Product Parameters

Paper making machine technical specification:
Main Product:	Culture paper, A4 paper, writing paper, etc
Grammage:	40~100g/m2
Equipment form:	Double circle net double cylinder
Capacity:	8-9T/24h
Raw paper width:	1880-1950mm
Design speed:	100m/min
Transmission speed:	40-80m/min
Roller balance:	G2.5 class
Dryer balance:	G4 class
Winding paper roll:	G1.6 class
Transmission mode:	Ac motor frequency control of motor speed digital distribution
Arrangement mode:	Right or left arrangement(selected by the user)
Gauge:	2700mm
Large equipment 1	Dryer cylinder:Ø2000mm×2
Large equipment 2	Cylinder mould:Ø1500 mm×2

Waste water recycling process
Transmission System

No.	Name	Power	Quantity	Technical requirements
1	Transmission section		10	AC motor * Electromagnetic speed control transmission
1-1	Fourdrinier part	55Kw	1
1-2	First press part	37Kw	1	ZLY224 hard surface gearbox
1-3	Second press part	30Kw	1	ZLY200 hard surface gearbox
1-4	Third press part	22Kw	1	ZLY180 hard surface gearbox
1-5	First cylinder group	30Kw	2	ZLY200 hard surface gearbox
1-6	The sizing part	15Kw	1
1-7	Second cylinder group	30Kw	1	ZLY200 hard surface gearbox
1-8	Calender part	30Kw	1
1-9	Reeling part	15Kw	1
2	water ring vacuum pump	37Kw	1	2BE-303
3	Total:	331Kw

Equipment Introduction

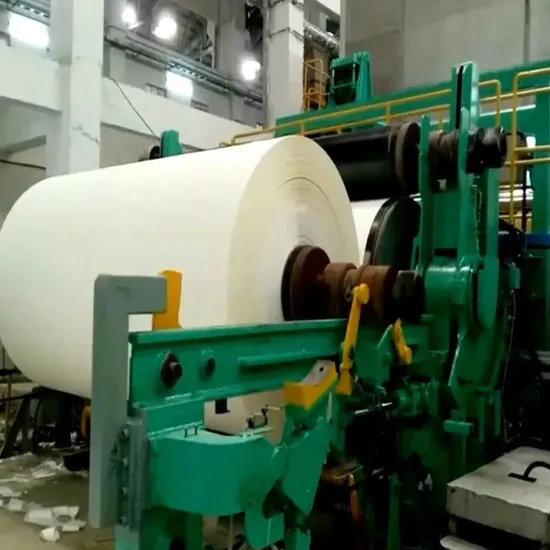

Production Show
FAQ:
1.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.

---
