High Capacity M6 Screw K Type Temperature Thermocouple Sensor

Product Description

Product Description
K Type Temperature Thermocouple Sensor
Hongtai's thermocouples are mainly customized strictly according to customer's requirements. To meet various standards, the production process is carefully inspected by our engineer and technician. K type sheath thermocouple has the ability of good corrosion resistance, high working temperature, stable performance and long operating life. The calibration of it can be K/E/J/B/S etc. With different calibration, its working temperature range also changes.
Due to the high demand of this kind thermocouple, our technicians will cooperate with you and help you make a better choice.
Main Technical Data for K type sheath thermocouple

Model	Graduation Mark	Temperature Range(°C)	Mounting&Fixing
WRN	K	-40-1200	1.Withour fixing devices; 2.Threaded connector; 3.Movable flange 4.Fixed flange 5.Elbow tube connection 6.Threaded cone connection 7.Straight tube connection 8.Fixed threaded tube connection 9.Movable threaded tube connection
WRE	E	-40-900
WRF	J	0-750
WRC	T	-40-350
WRP	S	0-1600
WRQ	R	0-1600
WRR	B	600-1700
WRM	N	-40-1300

Applications
1.widely used in science and industry
2.temperature measurement for kilns
3.gas turbine exhaust application
4.used for diesel engines and other industrial processes.
When inquiry, please specify:
1. tube dia and length
2. flexible screw size or flange size
3. Required Temperature Range
4. Sensor Material or type(k e j t )

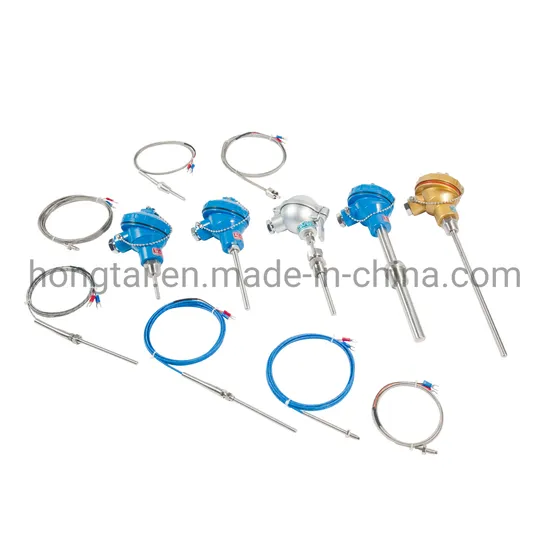

Show of K Type
Thermocouple Sensor
