US$14,300.00-21,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Heating and Ventilation Equipment Type
Air Duct
Epidemic Prevention Equipment
Wheel Loader
Computerized
Non-Computerized
Attachments
4 in One Bucket, Sweeper, Snow Blade etc
Operating Capacity(Kg)
850
Overall Dimensions
3480X1820X2080mm
Max.Travel Speed(Km/H)
12
Transport Package
Container
Production Capacity
10000 Sets/Year
Packaging & Delivery
Package Size
284.00cm * 160.00cm * 220.00cm
Package Gross Weight
3900.000kg
Product Description
Product description
| |
Standard configuration Xinchai490 engine, open-type operator cab,hand control system(mechanical type) and hydraulic system,10-16.5 tires, standard bucket,hydraulic brake,Italy fastre quick hitch coupler.
| Standard configuration Xinchai498 engine, open-type operator cab,hand control system(mechanical type), and hydraulic system, 12-16.5 tires,standard bucket,hydraulic brake,Italy fastre quick hitch coupler.
|
Optional configuration
Air conditioner
Cab fitted with a heater as standard
Haydraulic joystick controls | Optional configuration
Air conditioner
Cab fitted with a heater as standard
Haydraulic joystick controls |

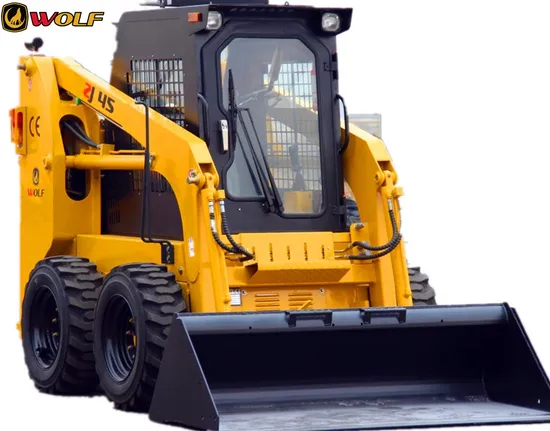

To meet different demands of the skid loader, we can provide different load capacity skid loader for choose, from 300kg to 1200kg. Specification:
| Popular wolf skid steer loaaders |
| Model | ZJ30 | ZJ45 | ZJ60 | ZJ100 | ZJ120 |
| Operating load | 300kg | 700kg | 850kg | 1100kg | 1200kg |
| Bucket capacity | 0.2m3 | 0.4m3 | 0.4m3 | 0.55m3 | 0.55m3 |
| Tire | 23x8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 |
| Self weight bucket | 1500kg | 2700kg | 2800kg | 3550kg | 3600kg |
| Overall operating height | 3590mm | 3980mm | 4000mm | 4070mm | 4070mm |
| Engine model | Yangdong492 | Xinchai490 | XINCHAI498T | Deutz engine | Deutz engine |
| Engine power | 30kw | 42kw | 45kw | 75kw | 75kw |
| Height to bucket hinge pin | 2650mm | 3080mm | 3100mm | 3280mm | 3280mm |
| Overall length with bucket | 3170mm | 3420mm | 3490mm | 3580mm | 3580mm |
| Dumping height | 1920mm | 2380mm | 2400mm | 2500mm | 2500mm |
| Dumping reach | 720mm | 700mm | 750mm | 700mm | 700mm |
| Wheel base | 801mm | 991mm | 991mm | 1115mm | 1115mm |
| Thread width | 882mm | 1450mm | 1500mm | 1500mm | 1500mm |
| Ground clearance | 180mm | 185mm | 205mm | 205mm | 205mm |
| Angle of departure | 20° | 20° | 20° | 20° | 20° |
| Front turning radius | 1681mm | 1958mm | 1958mm | 2144mm | 2144mm |
| Rear turning radius | 1371mm | 1630mm | 1728mm | 1857mm | 1857mm |
Detailed pictures know about skid steer loader
Shipment:
20ft container can load 2 sets, 40ft container can load 4 sets.
Reasons for choosing WOLF Products:
1. More than 50 professional and technical personnels;
2. Strict control and selection of materials;
3. Completely self manufactured and installed;
4. Advanced equipments and first-class production technology;
5. Sound management system and solid economic strength
6. Exclusive R&D, testing center;
7. Exclusive professional platform
24-hours online service
Welcome to contact us for more information!
>>
