QC-8X3200metal Hydraulic Guillotine Shear Cutting Machine

Product Description

Product Description

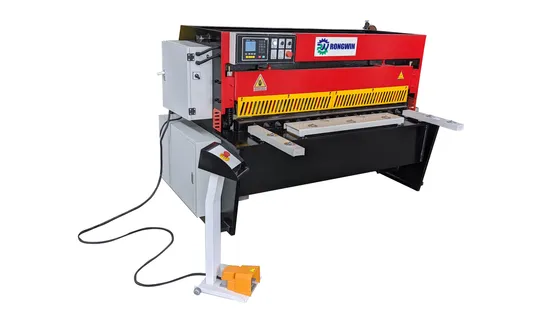

QC-8x3200metal hydraulic Guillotine shear cutting machine
1.The frame is steel welded structure, have sufficient strength and rigidity, eliminate internal stress and high frequency vibration, to ensure the overall accuracy of the fuselage. Has a good rigidity, two cylinders fixed on the left and right columns (wallboard).
2.Shear blades use 6CrW2Si material , heat treatment ,high quality materials ,can cutting stainless steel ,top blade with four cutting edges ,bottom blade with four cutting edges.
3.Worktable use ball, convenient feed materials, and ensure that the work piece is not scratched at run time.
Main Configuration :

NC Control system	E21S/P40T ELGO/DAC310/DAC360
Main Electric Components	Schneider Electrical from French
Main Motor	Siemens from Germany Brand
RAM Drive	Energy-saving servo drive from Taiwan delta
Hydraulic System	Bosch-Rexroth form Germany
Sealing Element	anti-corrosion
Tubing connector	EMB form Germany
Ball screw/ Polished rod	HIWIN from TaiWan
Foot Switch Electric Components	Schneider Electrical from French
Safety light certain	(Optional)

The configuration we provide
Selectable control system :
E21S
1.Backstop control;
2.Control of ordinary motor or frequency converter; Intelligent 3.positioning;
4.Dual-channel programmable digital output;
5.Artifacts count40 program stores,each program 25 steps;
6.Unilateral positioning Concession function;
7.Parameter 1 step backup and restore: Metric system DAC 360T Delem
1.Panel based housing
2.Bright LCD screen
3.Back / front gauge control
4.Retract function
5.Cutting angle and gap control
6.Stroke length limitation
7.Manual movement of all axes
8.Force control
9.Sheet thickness measurement
10.Return to Sender function
11.Second and third servo axis
12.Sheet support
DAC-310T Delem
1.Panel based housing
2.Bright LCD screen
3.Back gauge control
4.Retract function
5.Cutting angle or gap control
6.Stroke length limitation
7.Manual movement of axes
8.Stock count P40T ELGO
1.16 free programmable digital in-/outputs
2.Angle control / gap control / backgauge
3.Cut length and cut offset calculation by angle measurement system or time
4.Cut automationCybtouch 8/CYBELEC
1.Simple page, clear and eye-catching icons, easy to operate. 2.Automatically calculate various data required for shearing according to material properties.
3.Supports more than 10 languages.
4.Automatically adjust the blade gap.Three roller guide structure is adopted, and the front prepressure guide rail is used to keep the tool frame sticking to the upper guide rail and the
lower guide rail.
In the shear, the clearance of the blade can be adjusted according to the demand of different sheet materials to achieve better shear quality.
The right blade clearance will receive satisfactory shear effect. The machine tool is equipped with a quick blade clearance adjusting mechanism, which can meet the needs of different thickness of plate and material, and can be adjusted by rotating the hand wheel.
Product Parameters

Type	Cutting thickness (mm)	Cutting width (mm)	Travel times (times/min)	Bumper distance (mm)	Cutting angel (º)	Throat depth (mm)	Power (kw)	Dimension LxWxH (mm)
4x2500	4	2500	>=18	600	0.5-2	100	5.5	3130x1500x2070
4x3200	4	3200	>=16	600	0.5-2	100	7.5	3830x1500x2070
4x4000	4	4000	>=12	600	0.5-2	100	7.5	4630x1500x2070
6x2500	6	2500	>=15	600	0.5-2	100	7.5	3150x1600x2170
6x3200	6	3200	>=13	600	0.5-2	100	7.5	3850x1600x2170
6x4000	6	4000	>=10	600	0.5-2	100	7.5	4650x1600x2170
6x5000	6	5000	>=8	600	0.5-2.5	100	11	5650x1600x2270
6x6000	6	6000	>=6	600	0.5-2.5	100	11	6650x1610x2380
8x2500	8	2500	>=14	600	0.5-2	100	11	2170x1600x2170
8x3200	8	3200	>=12	600	0.5-2	100	11	3870x1600x2170
8x4000	8	4000	>=10	600	0.5-2	100	11	4670x1600x2170
8x5000	8	5000	>=8	600	0.5-2.5	100	11	5670x1600x2270
8x6000	8	6000	>=6	600	0.5-2.5	100	15	6670x1610x2380
10x2500	10	2500	>=12	600	0.5-2	100	11	3190x1600x2170
10x3200	10	3200	>=10	600	0.5-2	100	11	3890x1600x2170
10x4000	10	4000	>=8	600	0.5-2	100	11	4690x1600x2170
10x5000	10	5000	>=6	600	0.5-2.5	100	11	5690x1600x2270
10x6000	10	6000	>=4	600	0.5-2.5	100	15	6690x1610x2380
12x2500	12	2500	>=10	800	0.5-2.5	100	15	3270x1850x2315
12x3200	12	3200	>=8	800	0.5-2.5	100	15	3970x1850x2315
12x4000	12	4000	>=6	800	0.5-2.5	100	18.5	4770x1850x2315
12x5000	12	5000	>=6	800	0.5-2.5	100	18.5	5770x1950x2515
12x6000	12	6000	>=4	800	0.5-2.5	100	22	6770x2100x2750
16x2500	16	2500	>=8	800	0.5-2.5	100	18.5	3270x1850x2315
16x3200	16	3200	>=7	800	0.5-2.5	100	18.5	3970x1850x2315
16x4000	16	4000	>=6	800	0.5-2.5	100	22	4770x1850x2315
16x5000	16	5000	>=5	800	0.5-2.5	100	22	5770x1950x2515
16x6000	16	6000	>=4	800	0.5-2.5	100	30	6770x2100x2750
20x2500	20	2500	>=7	800	0.5-2.5	100	30	3370x2015x2575
20x3200	20	3200	>=6	800	0.5-2.5	100	30	4070x2015x2575
20x4000	20	4000	>=5	800	0.5-2.5	100	37	4870x2015x2675
20x5000	20	5000	>=4	800	0.5-2.5	100	37	5870x2115x2875
20x6000	20	6000	>=3	800	0.5-2.5	100	45	6870x2300x3200
25x2500	25	2500	>=6	1000	0.5-3	120	37	3390x2200x2700
25x3200	25	3200	>=5	1000	0.5-3	120	37	4090x2200x2700
25x4000	25	4000	>=4	1000	0.5-3	120	45	4890x2350x3000
32x2500	32	2500	>=5	1000	0.5-3	120	45	3490x2440x2915
32x3200	32	3200	>=4	1000	0.5-3	120	45	4190x2440x3015
32x4000	32	4000	>=3	1000	0.5-3	120	55	5100x2500x3315
40x2500	40	2500	>=4	1000	0.5-3	120	75	3530x2500x3300
40x3200	40	3200	>=3	1000	0.5-3	120	75	4230x2500x3500

Attention: The above date is juso for gour reference, if there is ang disaccord please refer to actual adate.
Company Profile
Founded in 2017 years, Nanjing RONGWIN Machinery Technology Co., Ltd is focus on press brake manufacturing and a professional one-stop smart custom metal solution service supplier.We are committed to building a strong Chinese metal working machinery and spare parts supply Chain System.
We have a dream "Let China's one-stop smart custom metal solution serve the world " and "We want to become a respected Chinese press brake manufacture, live 100 years " That's why we're always tring to keep our users satisifed.
we are specialized at metal working machinery and spar parts, like press brake, panel bender, fiber laser cutting machine, shearing machine, rolling machine, V grooving machine, hydraulic press, power press, ironworker, notching machine, tube cutting machine, tube bending machine, HVAC Dust Machine, punching die, blades, kinds of toolings, etc. We can give customer all the aspect solutions for the metal industry fabrication machinery. We can guide customers for choosing their metal processing equipment so that customer can get the most cost-effective solution by our guide. Meanwhile we also can do O E M & O D M service. We have professional engineer support, high efficiency sales team and competitive price , we design our machine in a top class level which makes our machine in a good looking appearance , due to the good after sale service and reliable quality, we have sold to many foreign customers, they like our machines, they usually buy from us not only one time, now we already sold to more than 70 countries, including Europe, South America like Brazil, U S A, Canada, Russia, Vietnam, Pakistan, Australia, New Zealand, Africa, Middle East country etc. After several years' development, We already applied some patent, and also got CE certificate and SGS for Press Brake, Laser Cutting machine, Panel Bender,V grooving machine etc, we will grow up together with our customer's support, we believe that our company will have a bright future.
Please trust ROGNWIN .We are always trying to make you satisifed.
Certifications
Packaging & Shipping
FAQ
1.Are you the manufacturer ? Can we visit your factory ?
Yes ,of course you can ,We have our own technical team for products design, welcome to visit our factory and check our machines quality,we will answer your requirements on time.
2.What is your main product ?
Our main products are plate cutting ,bending,straightening machines, panel bender, fiber laser cutting machines, hydraulic machines, V grooving machines, etc. Our main exporting market is South America,Europe,Middle East and Africa.
3.What are the advantages of RONGWIN machines, how can i believe the quality ?
Our factory has the advanced CNC processing equipment to ensure accuracy, and we have professional technical personnel to inspect and ensure that every machine must meet the standard before leaving the factory.
4.Can we become the sales distributor for RONGWIN ?
Yes ,so far we are looking for sales agents from different countries ,if the cooperation is successful ,as an agent ,you would get more preferential price based on sales quantities.
5.What is your payment term ?
T/T ,L/C,Western Union ,****** Secure Payment etc.
6.How can you guarantee the after-sales service ?
First of all, we will provide relevant technical documents and guide you to operate online.Then, if engineers must be arranged, we can also arrange engineers to go abroad for training and debugging.
7.Can your factory provide OEM service ?
Based on sales quantities, we would be very happy to do so.

---
