Ms3008 Multi-Angle Spectrophotometer 8 Measuring Angles Auto Paint Color Sparkle Grade Test

Product Description

MS3008 Multi-Angle Spectrophotometer Product Description MS3008 Multi-angle spectrophotometer adopts Industrial-grade MCU with 8 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. The smooth operating system and superior performance of the optical system allow the MS3008 multi-angle spectrometer to provide repeatability and reproducibility of Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) measurement.

3nh Multi-angle spectrophotometer MS3008 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can not only measure multi-angle color difference, but also measure and characterize special finishes through 8 measuring angles. Even in the curved surface, it also has high measuring accuracy and stability.

Detailed Photos 1. Multi-angle measurement
Adopt 6 illumination sources, 2 receivers to measure 8 measurement angles at the same time

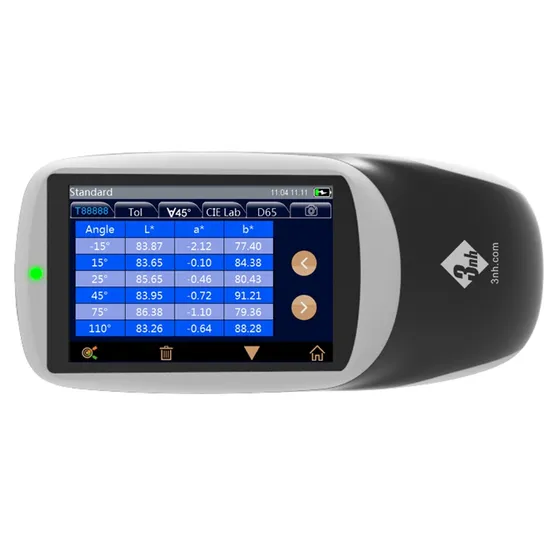

2. More intuitive display
Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.
3. 256 Image Element Double Array CMOS Image Sensor

The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.
4. Adopt Full spectrum LED light source with blue enhancement
The Full spectrum LED light source with blue enhancement ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.
5. Professional-grade white board
Professional-grade white board, high hardness in the surface, stable optical performance
6. Ergonomics Novel and fashionable appearance design

The instrument appearance design is easy to operate, and the hand holding position and the measurement button are well-designed, which can meet different holding habits, smooth and fine surface, from the high-precision appearance treatment process.
7. Color camera preview, can clearly observe the measured area

Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy.
8. Multiple color measurement space, multiple observation light sources

Offer CIE LAB,XYZ,Yxy,LCh,β XY,DIN Lab99 color space, And D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83/U30) A variety of light source, which can meet the special measurement demand under different measurement conditions.
9. Easily analyze data

The screen can intuitively display spectrum/data, sample chromaticity value, color difference value/figure, pass/fail results, color simulation, sample effect value, effect difference value and other data, convenient to view while also greatly improve the user's work efficiency.
Packaging & Shipping
Product Parameters

Model	MS3008
Measurement Geometry	8 measurement angles (6 illumination sources, 2 receivers)
Measure Angle	45° Receiver: 45as-15°,45as15°,45as25°,45as45°,45as75°,45as110° 15°Receiver: 15as-45°,15as-15° Conform to the standards:ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
Application	Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source	Full spectrum LED light source with blue enhancement
Lamp Life	5 years, 3 million times measurements
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400nm-700nm
Wavelength Interval	10nm
Measurement Range	0~600%
Semiband Width	10nm
Measuring Aperture	Illumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm)
Color Space	CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula	ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index	Flop Index, Int-Em
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time	Approx. 1 second for one angle Approx. 8 seconds for all angles
Repeatability	Spectral reflectance: Standard deviation within 0.08% Chromaticity value: ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility	ΔE*<0.10,avg on the gray tile of BCRA tile set ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error	0.18ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters	Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement	6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80° 15d Diffuse coarseness(DC)
Effect Repeatability	Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect Reproducibility	Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations) (avg on reference Series II BCRA tile set) Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger mode	Pressure sensing trigger, button trigger, software trigger
Measuring Mode	Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode	Color camera preview
Dimension	L*W*H=195X83X128mm
Weight	About 1Kg
Power	lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge
Display	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB, Bluetooth 5.0
Data Storage	1000 pcs Standards,4000 pcs Samples
Language	Simplified Chinese, Traditional Chinese, English
Operating Environment	10ºC to 50ºC, humidity does not exceed 85%, no condensation
Storage Environment	-20ºC to 50ºC, humidity does not exceed 85%, no condensation
Calibration	Built-in white board parameters, external white board, black light trap, color board
Calibration Interval	4 hours,8 hours,24 hours,Startup calibration
Standard accessories	Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory	Micro-printer
Notes	Technical parameters are for reference only, subject to actual sales products.
