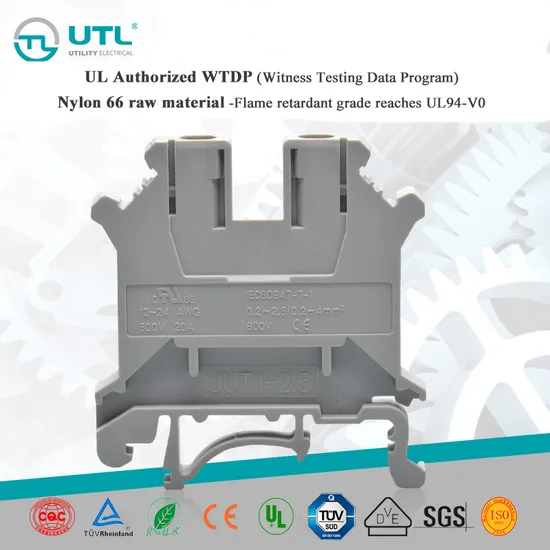

2.5mm2 Terminal Blocks UK2.5 Feed-Through Rail-Mounted Terminal Block Jut1-2.5

Product Description

UTL terminal blocks JUT1-2.5 can replace phoenix UK2.5 Feed-through Din Rail Terminal Connector

Name	Date
Number of connection points	2
Number of potentials	1
Color	gray
Length	42.5	mm
Width	5.2	mm
With U-rail height	47	mm
With G-rail height	52	mm
Pollution degree	3
Insulation material group	I
Rated surge voltage	8	KV
Meet standard	IEC60947-7-1
Rated voltage	800	V
Nominal current	32	A
Meet standard	UL1059
Rated voltage	600	V
Nominal current	20	A
Min.connection capacity for solid wire	0.2/24	mm²/AWG
Max.connection capacity for solid wire	42472	mm²/AWG
Min.connection capacity for strand wire	0.2/24	mm²/AWG
Max.connection capacity for strand wire	2.5/14	mm²/AWG
Line direciton	Side inlet
Strip length	8	mm
Insulation material	PA66
Flame-retarded Rating	UL94 V-0

Features:
Terminal:Universal foot which can be used on NS 35... and NS 32... DIN rails. Potential distribution via fixed bridges in the terminal center or insertion bridges in the clamping space Two ends on the top with white marking system to realize uniformed sign. The JUT universal screw terminal block series has the typical features which are decisive for practical applications The insulating shell raw material is Nylon 66(PA66), with high mechanical intensity, good electic property, and super flexibility. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections. Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.
UTILITY Electrical Co., Ltd, established in 1990,specializes in manufacturing DIN rail-mounted Terminal Blocks, PCB Terminal Blocks, Quick Connector for Lighting Area, Heavy Duty Connectors, Cable Gland,Tools, Cold-pressing Terminal, UAC Aviation Connector, Waterproof Connector, Push Button, Indicator Light, Waterproof Box, Dial Switch, Bus bar connector, Middle Relay etc. Our products have passed UL, TUV, CSA, CCC, CCS, CE, VDE,SGS, Rohs CQC certifications.Products are mainly exported to Europe, USA, Russia, Brazil, Southeast Asia, Hong Kong and Taiwan. we offer OEM and ODM service for worldwide customers.

---
