Strong Function Vacuum Harrow Dryer for Drying Magnesium Carbonate

Product Description

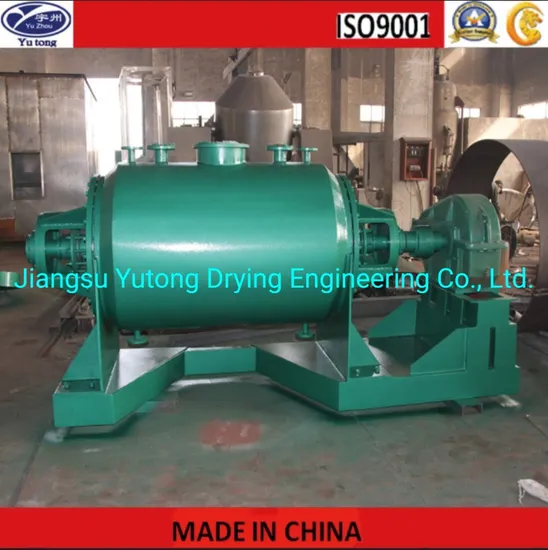

ZKG Vacuum Dryer

Description
ZKG vacuum drying equipment is new type high-efficiency horizontal vacuum drying equipment. It adopts jacketed structure, and the jacket can be heated by steam, hot water or conduction oil. The jacket transfers the heat to the inner wall of the shell via conduction or radiation. The dried materials are added into the dryer through an opening in the middle of the machine shell. Constant stirring of the revolving harrow causes the materials move back and forth. The surface contacting with the inner wall of the shell constantly updates, resulting in high drying rate and uniform finished products.
Product Parameters

Model	Volume (L)	Working Volume (L)	Heating Area (m2)	Stirring Rate (rmp)	Power (kw)	Interlayer Pressure (Mpa)	Pressure in the Container (Mpa)
ZKG-500	500	300	3.2	8 to 18	4	0.3	-0.096 to 0.15
ZKG-750	750	450	4.4	8 to 18	5.5	0.3	-0.096 to 0.15
ZKG-1000	1000	600	5.1	8 to 18	5.5	0.3	-0.096 to 0.15
ZKG-1500	1500	900	6.3	8 to 18	7.5	0.3	-0.096 to 0.15
ZKG-2000	2000	1200	8.1	8 to 18	7.5	0.3	-0.096 to 0.15
ZKG-3000	3000	1800	10.6	8 to 18	11	0.3	-0.096 to 0.15
ZKG-4000	4000	2400	12.3	8 to 18	15	0.3	-0.096 to 0.15
ZKG-5000	5000	300	14.2	8 to 18	18.5	0.3	-0.096 to 0.15
ZKG-6000	6000	3600	16.5	8 to 18	22	0.3	-0.096 to 0.15

Application
ZKG vacuum dryer equipment is designed for drying slurry, pasty, powdery materials, thermosensitive materials requiring low-temperature drying, easily oxidized materials, as well as explosive materials, toxic materials and the materials whose organic solvents should be recovered. This vacuum drying equipment is applied to the pharmaceutical, nourishment, food, chemical and other industries.

Features
1. ZKG vacuum drying equipment uses large-area interlayer heating, which can obtain large heat-transfer surface and high heat efficiency.
2. This vacuum drying equipment with a stirring device can improve the heating uniformity and smoothly dry slurry and pasty materials.
3. It is easy to operate and clean, which can effectively reduce labor intensity.
4. If this vacuum harrow dryer adopts internal concurrent heating, the heating area will be greatly increased.
