Oyd Lightweight Partition Wall Panel Equipment Sandwich Wall Panel Equipment Machine

Product Description

Product Description
Eps cement sandwich panel machinery to adapt to the recent development trends of building materials, our company's bold innovation design of highly automated production lines, which enables the wastewater and materials to be reused through elaborate design.
The calcium silicate board polystyrene particles sandwich panel of our company is produced with wide raw material sources at low prices. The plate has the advantages of being lightweight, high strength, thermal preservation, heat insulation, waterproofing, radiation protection, and so on.

Machinery Parameters
Capacity	20,000sqm~600,000sqm per year
Thickness	50-250mm thickness. special sizes need to be customized
Length	2440~3600mm, special sizes need to be customized
Width	610mm, special sizes need to be customized
Raw material	There are mainly two different types 1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add) 2. Formed cement+additives
Finished board type	1. Composite board/sandwich board, with surface board 2. Lightweight solid panel, without surface board
Surface board types	1. Calcium silicate board 2. Fiber cement board 3. MgO board
Electrical components	There are mainly two different types

Product Parameters
The layout of eps cement sandwich panel machinery
As a professional eps sandwich panel machine manufacturer, we have a vertical processing center, boring machines, milling machines, drilling machines, planers, argon welders, and so on. Good processing equipment makeshift good machines.
Our Advantages
Advantages of our eps cement sandwich panel machinery
1. Automatic raw material feeding --metering -mixing system, accurate measurement to ensure proportion stability
2. The Mixer is a double-shaft, Compact structure beautiful appearance, stable operation, convenient operation, and high production efficiency. Besides, the blade is only 3mm from the mixer wall so that can guarantee to mix even.
The end of the shaft has four seals, no oil leakage, no slurry leakage, and automatic oil filling maintenance.
3. For big capacity, we will equip a second mixer to help you increase working efficiency. After the first mixing finish, will pour the total slurry into the second mixer, and then start the next mixing directly to save time. and the second mixer has two functions, one is for temperature storage and the second is to avoid the separation of the slurry.
4. We use the pump to cast the slurry into the mold car, in this way, the slurry will be more even, with fewer bubbles, and it can keep the working platform clear without wasted raw material. Besides, it can avoid the difference between the two ends of the two boards by workers' vibration, protect the integrity of the calcium silicate board, and ensure the compactness of both sides.5. We have a double-functional mold car, it not only can produce a composite but also can produce solid panels to suit market demand. moreover, our solid panel technology is No.1 in China.
6. The double-functional mold car could produce the 4 edges of the T & G, we already have the project for this kind of edge requirement.
7. What we provide is not only the machine but a whole system. We will provide the installation, commissioning, and purchasing of the raw material, and solve any problem timely. We will provide one year guarantee. Workshop design, equipment installation, Workers'trainning. Formula's upgrades are on time provided.
Finished Products
Finished products of eps cement sandwich panel machinery
Installation Instructions

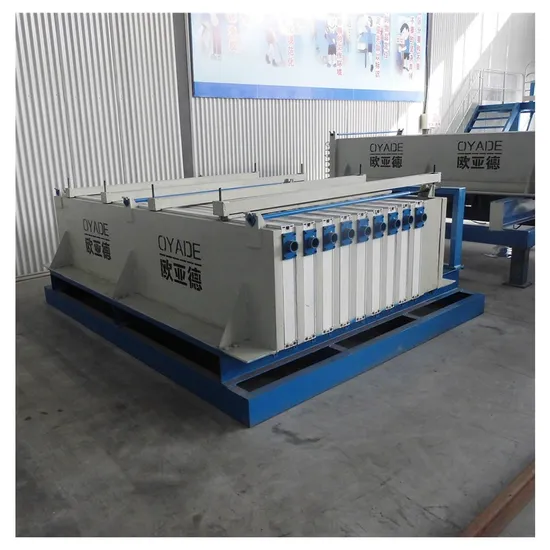

Mainly equipment-eps cement sandwich panel machinery


Certifications
We have over 10 patented technology in our country. Would love to show it to you when you come.


FAQ

1	Question: How many projects have you installed? Reply: we have installed over 100projects in domestic and abroad.
2	Question: How many years of experience do you have in this field? Reply: Our general engineer has around 20 years of experience; all others have over 10 years of experience.
3	Question: How will you provide installation&commissioning? Reply: Will provide 2~4persons(adjustable according to configuration )for installation and testing.

Company Profile
Our Company
Products
Shandong YURUI International is specialized in designing and manufacturing gypsum board production lines, mgo board production lines, and lightweight EPS cement wall panel production lines.
Experience
Our general engineer has over 20 years of experience in the mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10 years of experience. With rich experience in mechanical design and manufacturing, and professional import and export services, we commit to providing the best-integrated solutions for production lines for customers.
Promise
After installation and commissioning, we will provide technical formulas suitable to the client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process. Our professional sales team, design team, manufacturing team, installation team, process team, and service team, promise you a 100% perfect project.

---
