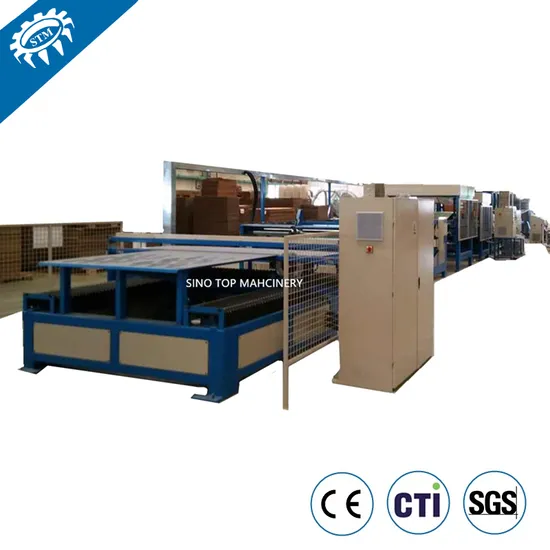

Automatic High Speed and High Quality Endless Honeycomb Core Machine

Product Description

We engaged in HONEYCOMB LAMINATING CORE AND CARDBOARD MACHINE, EDGEBOARD MACHINE, SLIP SHEET MACHINE, DUNNAGE BAG MACHINE, FLAT BOARD MACHINE, SLITTING MACHINE, etc, OEM is avaliable and welcome.
Production Name
Automatic honeycomb laminating core making machine
Packge & Delivery
1.Wooden case or transparent strength film and corner board to protect
2. Delivery time: 30-70days
Production Line
1.ENDLESS HONEYCOMB CORE:Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing--Core Cutting--Stacking
2.LAMINATION:Paper Roll Setting--Core loading--Core Expanding & Heating--Gluing--Lamination & Cold Pressing--Lamination & Drying--Cold Pressing--Board Slitting--Board Cutting--Conveyor
3.PAPER HONEYCOMB PANEL in one process:Paper Roll Setting--Feeding--Gluing & Alignment--Pressing & Hole Making--Core Gluing--Core Cutting--Conveyor--Core Expanding & Heating--Gluing--Lamination & Cold Pressing--Lamination & Drying--Cold Pressing--Board Slitting--Board Cutting--Conveyor
Techinic Parameter
Advantage of HONEYCOMB CORE MACHINE
1.honeycomb machine adopts full Hydraulic shaftless paper holder, it is more convenient to operate; and it uses automotive-type disc brake structure which can stable control the tension. The overall uses of casting structure, the mechanical properties more stable.
2. high speed horizontal cutting honeycomb machine, which don't touch the gluing line while cutting, and the core paper feeding into cutter are stable. We use imported cutter which is durable, and imported high-precision rails which has high cutting precise.
3.The Synchronization cutting mechanism adopts servo tracing which has high cutting accuracy; it adopts Taiwan ball screw which makes the walking freely; By using imported high-precision rails, it can move flexible and cutting with high-precision.
Usage and Funcation
Brief Intruduction of US
Factoy locates in WUXI,CHINA, it is a new factory comes from ZHONGJIANTE enterprise, one is in wuxi for production base and one office in suzhou for sales center who' s quite near shanghai port. It is full of exporting experience paper packaging machine to JAPAN, DUBAI, FINLAN, BRAZIL.
Best quality and best service to be NO.1 and make the top one in the world.
Warranty
One year wanrranty, and whole life after sale service. 24 hours servie.
Main Products
Honeycomb machine, edgeboard machine, slitting machine, slip sheet machine, automatic dunnage bag machine, flat baord machine, gluing machine, corrugated machine,ect
Relevants products
Honeycomb core, honeycomb cardboard, corner board, edgeboard protector, angle board, slip sheet, anti-slip sheet, flat board, dunnage bag, air bag.

Model	ZFX 1600	ZFX 1800	ZFX 2000	ZFX-2200
Max width	1600mm	1800	2000	2200
Cell size	4-25mm	4-25mm	4-25mm	4-25mm
Cell size per line	4 groups, 2 for free	4 groups, 2 for free	4 groups, 2 for free	4 groups, 2 for free
Cutting thickness	6-100mm	6-100mm	6-100mm	6-100mm
Cutting speed	350-650 shoots/min	350-650 shoots/min	350-650 shoots/min	350-650 shoots/min
Cutting accuracy	±0.08mm	±0.08mm	±0.08mm	±0.08mm
Cutting method	Horizontal or vertical	Horizontal or vertical	Horizontal or vertical	Horizontal or vertical
Paper layer	6 layers	6 layers	6 layers	6 layers
Glue	PVA	PVA	PVA	PVA
Gluing way	Rolling or Spraying	Rolling or Spraying	Rolling or Spraying	Rolling or Spraying
Paper Holder	Hydraulic or mechanic	Hydraulic or mechanic	Hydraulic or mechanic	Hydraulic or mechanic
Air hole	Hole or channel	Hole or channel	Hole or channel	Hole or channel
Wastage	≤1%	≤1%	≤1%	≤1%
Moisture Content	10%-12%	10%-12%	10%-12%	10%-12%
Heating	Hot panel	Hot panel	Hot panel	Hot panel
Power	136kw	136kw	136kw	136kw
Paper demanding	≥90g	≥90g	≥90g	≥90g
Production capacity	≥6 Ton	≥7Ton	≥8Ton	≥9Ton
Overall Size	24000*2000*2000	24000*2000*2000	24000*2000*2000	24000*2000*2000
Weight	23T	24T	25T	26T
Workers	1-2 person	1-2 person	1-2 person	1-2 person

---
