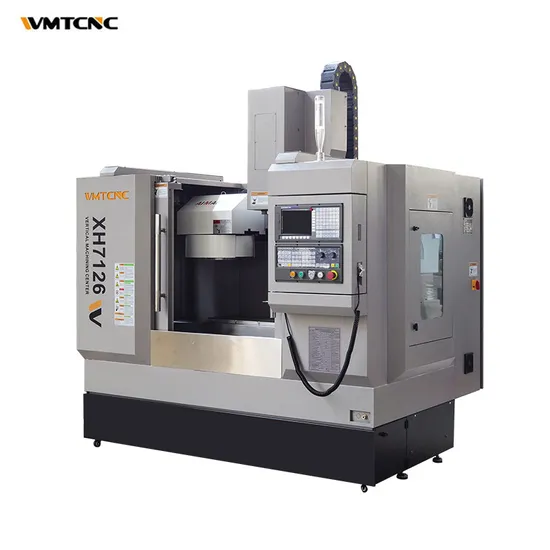

4 axis cnc vertical machining XH7126 vertical milling machine vmc machine

Product Description

https://wmtcnc.en.made-in-china.com/contact-info.html
Product Description
4 axis cnc vertical machining XH7126 vertical milling machine vmc machine main features:
1. High Precision hard guideway and screw.2. Taiwan-made spindle unit, 8000rpm speed available.3. Taiwan OKADA Funnel Type 12T ATC can be choosen.4. Reliable Control System: Fanuc, Siemens, Mitsubishi, GSK.5. Automatic Central Lubrication System.

Specification	XH7126
Worktable
Worktable size(LxW)	800x260mm
T-slot (NxWxD)	3-16x75mm
Travel
X/Y/Z axis travel	450/320/450mm
Machining range
Distance from spindle center to column	360mm
Distance from spindle nose to worktable surface	90-540mm
Spindle
Spindle taper	BT40
Spindle power	3.7kw
Max.spindle speed	8000rpm
Feed
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	15/15/15 m/min
Power
AC servo motor torque(X/Y/Z)	6/6/15N.m
X/Y/Z feed motor power	1/1/2kw
Rated power	8kw
Ball screw(diameter+lead)
X/Y/Z axis ball screw	2510
Tool magazine
Tool magazine capacity	12T
Max.length of tool	200mm
Tool change time(T-T)	7s
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	±.0.02mm
Re-positioning accuracy(X/Y/Z)	±.0.01mm
Machine dimension
LxWxH	2100x1850x2250mm
Machine weight
Max.loading of worktable	200kg
Machine weight	2200kg

Detailed Images

Company Profile


FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
