Friction Washing; PP PE Pelletizing

Product Description

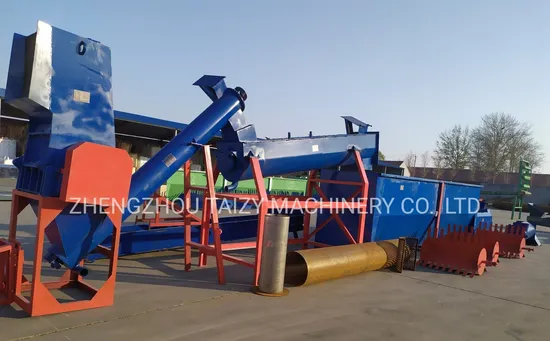

Friction washer in Pelletizing machine line
Friction washer is the another step compare common steps of pelletizing,
it is to wash those very dirty material, espeially with dust and oil plastic.
PP PE flake recycling line mainly includes plastic crusher, plastic washing machine, dewatering machine, plastic pelletizing machine, cooling tank, cutting machine, etc. This plastic pelletizing line is mainly used to deal with waste hard flakes. Common raw materials are plastic baskets and plastic barrels made of PE, PP. The Shuliy Group can match different production lines, design factories, and calculate factory areas according to customers' different production needs, uses, and raw materials.
The plastic granulating unit is a recyclable type for the professional treatment of PP/PE LDPE, HDPE,
ABS, PVC, ETC. At the same time, it also belongs to environmental protection equipment.
A large number of used woven bags, plastic film, agriculture convenience bags, etc. through the plastic
ranulation unit into the secondary processing program, providing a strong cornerstone for the furniture
industry, daily necessities manufacturing.

1.Belt conveyor: Transfer the raw material to the crusher for crushing and washing
2.Crushing and washing machine:The machine can crush the waste plastic into small piece besides wash them and then
put them into the plastic granule making machine.
3.Conveyor:delivery crushered raw material to the pool cleaning
4.Pool:Clean the crushed raw material and precipitate the impurities.
5.Pool pulley:Slide the crushed raw material of the pool to reach the other end.
6.dewatering machine:Remove the broken plastic from the pool, with the function of dehydration
7.Conveyor+Automatic feeder:converyor send broken raw materials to the feeder,the feeder connect with pellet making
machine,replace the artificial pressure into the granulator
8.Host pellet making machine :The raw material is heated and melted in this machine
9.Second pellet making machine:The melted plastic is drawn through the die in the secondary machine
10.water tank :is used to cool the plastic pellet and send the pellet to next step-plastic cutting machine.
11.Plastic cutting machine:This machine is used to cut the plastic strip into small pieces and the size of pellet can be adjusted
as your requirements.
12.Plastic pellet packing machine:packing the final product(plastic pellet)
13.Conveyor:delivery the plastic pellet to the automatic packing machine
14.Control cabinet:The temperature control cabinet control the temperature of the plastic pellet machine and also make people
asy operate the machine.

---
