Semi-Auto Fully Auto CNC Edge Milling Machine with Single Head or Double Head

Product Description

Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head is kind of automatic CNC machine for plate edge bevel cutting and milling. Standard machine with working range of Clamp thickness 6-80mm, Bevel angel 0-85 degree. Bevel width could reach 100mm.
With advantages of high efficiency and presicious suitable for multi sizes of plates max 2 meters.
Machine setting with automatic material retaining system and hydraulic fixed plate.Operator could just set up parameters on touch screen,one key start for beveling operate. Each motion shaft adopts servo drive control on whole machine.Up and down spindle can process a variety of beveling types,Control system can automatically calculate the post-layering cutting when large bevel on heavy duty metals. 8 Groups of machining parameters can be easily record and retrieval. Machine have fault self-diagnosis function. Blade replacement and inspection can be one-key operate ready. Automatic lubrication system for key transmission parts. Iron scrap automatic collection for option. Generally to achieve operation intuitive, convenient and simple, easy and efficient, size precision and more humanized.
Optional Function Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head
More Safe:work process without operator participation,control box at 24 Voltage. More Simple:HMI Interface More Environmental:Cold cutting and milling process without pollution More Efficient: Processing Speed of 0~2000mm/min Higher Accuracy: Angel ±0.5 degree,Straightness ±0.5mm Cold cutting, no oxidation and deformation of the surface Processing Data storage function, call the program at any time Touch screw input data, one button to start beveling operation Optional bevel joint diversification, Remote system upgrade available Optional material processing records. Parameter setting without manual calculation
Specifications for Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head

Model Name		GMM-V4000 V for Single Head				GMM-X4000 X for Double head
Machine Stroke(max length)		4000mm				4000mm
Plate Thickness Range		8-80mm				8-80mm
Bevel Angel		Top Bevel:0-85 degree,				Top Bevel:0-85 degree, Buttom Bevel:0-60 Degree
Processing Speed		800-1500mm/min				800-1500mm/min
Spindle Power		5.5kw X 1 Units				5.5kw X 2 Units
Pressure Foot QTY		14 Piece				14 Piece
Pressure Been Move		Automatic				Automatic
Table Support Move		Automatic				Automatic
Safty Device Backside		Protective Cover + Safty Door				Protective Cover + Safty Door
Scraps Removal System		Spiral Removal+ Hoisting System				Spiral Removal+ Hoisting System
Hydraulic Power		7Mpa				7Mpa
Total Power		Approx 18kw				Aoorix 26kw
Machine Weight		Approx 7.5 Ton				About 10.5 Ton
Machine Body(LengthxWidthxHeight)		6200x2300x2750(mm)				7300x2300x2750(mm)

Machine Picture for Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head
Compact pressure foot by Hydralic control system suitable for large plate and small plates min to 80mm

Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head with double head optional to process double sided beveling simultaneously with high efficiency
Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head. 85% of the machine manufacture and assambly by ourself with quality control.
Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head
Welcome and warmly assist for customer Inspection and machine testing in factory before shipments packing.
Semi-auto Fully Auto CNC Edge Milling Machine with single head or double head

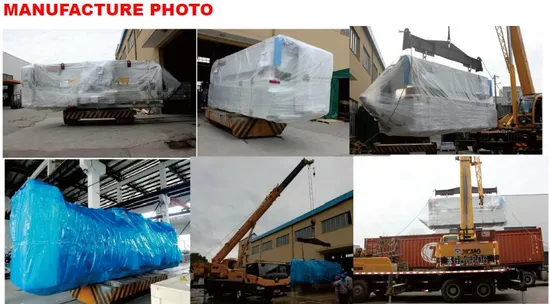

Machine will be packing well with water proof and safety structures with marking.
Machine lifting and loading into OT containers.

---
