US$10,000.00-420,662.00
|
1 Set
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Transport Package
The Machine Will Be Packed by The Plywood Case
Specification
7565*5595*5306mm
Production Capacity
300set/Sets Per Month
Product Description
Product Description
Product Parameters
Item | Unit | U3020 |
Travels |
Gantry frame moves forward and backward X-axis | mm | 2000 |
Main shaft slide moves left and right Y-axis | mm | 3000 |
Up and down travel direction of spindle Z axis | mm | 1000 |
A/C axis positioning (VDI3441) | | 8 |
A/C axis repeatability (VDI3441) | | 4 |
Worktable |
Worktable size | mm | 2000*3000 |
Distance from spindle end to worktable | mm | 450-1450 |
Worktable T-slots(No.-W*distance) | mm | 9-22*200 |
Max.weight on worktable | T/m2 | 7 |
Gantry width | mm | 3700 |
Spindle |
Spindle specification | | HSK-A63 |
Spindle drive | | Motorized spindle |
| | Y connection | △connection |
Spindle speed | rpm | 3280 | 6000 |
Maximum spindle speed | rpm | 8000 | 20000 |
Spindle power | kw | 11 | 15 |
VDI3441 (JISB6338) |
Positioning | mm | P0.03(±0.004/300) |
Repeatability | mm | Ps0.028(±0.003) |
Basic parameters | |
Spindle power | kw | 3.7/6.3 |
A/C axis rotation angle | o | ±110/±360 |
A/C axis maximum speed | rpm | 60 |
X-axis rail specification | | 4 piece 4 5 roller |
Y-axis rail specification | | 55roller |
Z-axis rail specification | | 4 piece 4 5 roller |
Specification of X-axis ball screw | | 6320 |
Specification of Y-axis ball screw | | 6320 |
Specification of Z-axis ball screw | | 5010 |
X-axis servo motor | kw | 4.0*2 piece |
Y-axis servo motor | kw | 7.0 |
Z-axis servo motor | kw | 7.0 |
Machine weight | T | 42 |
Dimension(L/W/h) | mm | 7565*5595*5306 |
The company reserves the right to change the above specfiations for products or technologies. |
Standard proximity and function |
1.FANUC 0i-MF Plus (0)control system | 13. Electric cabinet air conditioner |
2.HSK-A63 electric spindle | 14.Water gun |
3.Oil coolant system | 15.Air gun |
4. Spindle blushing | 16.Foundation screw and horizontal cushion block |
5.Telescopic cover of triaxial rail | 17.Spiral type chip conveyor |
6.Handwheel | 18.Chain type chip conveyor |
7.Automatic lubrication system | |
8.Oil cooler | |
9.Transformer | |
10.Work light | |
11.Warm light | |
12.Manual loosening device | |
OUT LOOK SIZE

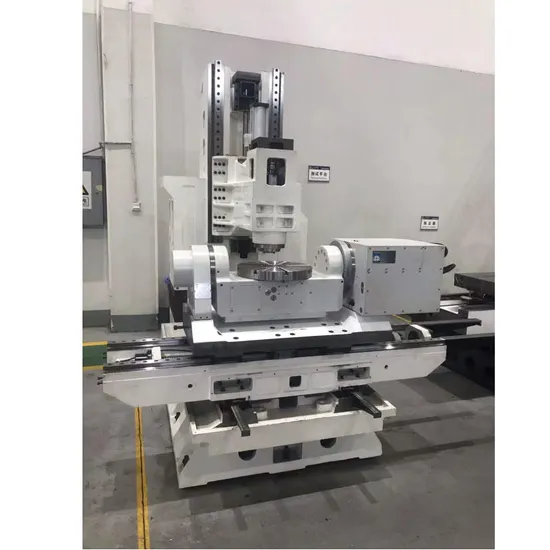

Detailed Photos
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
>>
