Steel Rib Type Wholesale Ibr Box Profile Trapezoidal Tile Metal Roofing Sheet Roll Forming Making Machine Wall Panel Machinery Price Production Line

Product Description

Product Description

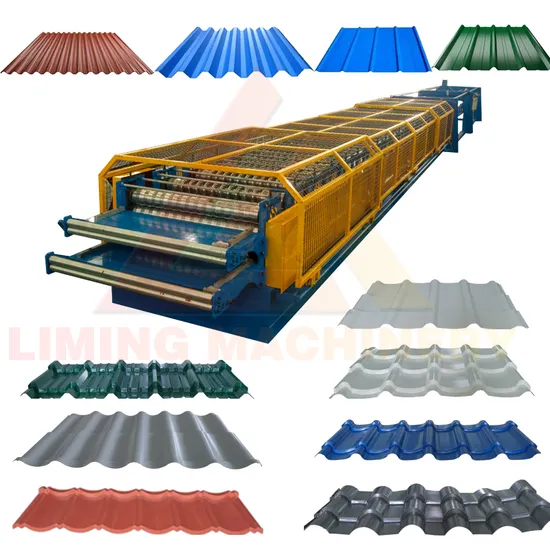

Trapezoidal Roofing Sheet Roll Forming Machine

Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.
This Producing Process Sketch As Below Picture:
General Parameter

1	Item	Parameters
2	Model NO.	YX18-136.7-1093.6
3	Material	Pre-painted galvanized sheet
4	Thickness	0.45-1.2 mm
5	Yield Strength	245 MPa
6	Feed Width	1250 mm
7	Effective width	1093.6 mm
8	Roll Stages	18 Stages
9	Shafts Diameter	∅75/95 mm
10	Main Motor Power	11 KW
11	Hydraulic Group Power	5.5KW
12	Max. Line speed of roll former	Approx. 15 m/min
13	Electric Standard	According to local voltage

Machine Components
A. 5 Ton X 1250 Hydraulic Un-coiler-provided by the buyer themselves
B. Entry roller & Manual Pre-shearing device Dual Leveling Un-powered
Smart cut control, to cut off the end of the final piece of sheet only
Working thickness up to 0.8mm

C. Dual Cold Rolling Mills
Gear/Sprocket driving; Dual Levelling,18-step to form
Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated
Shafts Diameter=ф95mm, Precision Machined, fine Polished
Main motor =5.5W, Frequency speed control
Manual Clutch to switch the driven system
Max. Line speed of roll former: Approx. 15m/min
Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside
D. Hydraulic Cutting Device
Stop to cut, Post cut, No blanking cut
Cutting tool material: Cr12, Heat treatment
Hydraulic group, Pump motor =5.5KW
E. PLC Control System
Control the quantity & cutting length automatically.
Control the switch action to run the different two profiles
Combined with: PLC, Touch Screen , Inverter ,
Encoder (Omron), etc
Cut-to-length tolerance≤±2 mm
Control voltage 24V
F. Product Rack Un-powered, 3 units Company Profile

FAQ
1. How to get the quotation?
1.Give me the profile drawing and thickness,this is the important.
1. Other specific requirements is welcome,such as the speed,power and voltage you want.
1. If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
2.Do you have after sales support?
Yes, we are glad to support advice. Our technicians available across the world.
3. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 32 years, and we offer a two-year warranty.
4. What can we do if the machine broken?
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
After Sales Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.

Terms Of Trade
1.Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
2.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.

---
