Product Details
Product Description
Product Description

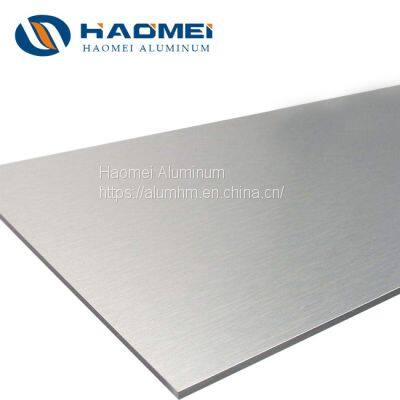

5083 aluminum plate for tanker body is Al-Mg aluminum alloy. The main alloying element is magnesium. The tensile strength is between 290-345Mpa and the yield strength is between 145-283Mpa.
It has good corrosion resistance, excellent weldability, good cold workability, and medium strength. It is widely used in aircraft fuel tanks, oil pipes, tank truck, sheet metal parts of transportation vehicles and ships, hardware products, and electrical appliance shell,etc.
Why Choose Aluminum Plate for TankersThe aluminium alloy load tanker is about 20% lighter than the steel tanker of the same size, but the transportation can be increased by 30%. The aluminum alloy tanker body is composed of hoardings, wave-proof panels, tank mouths, etc. A complete tank body generally requires 4-6 aluminum plates to be welded together.
Haomei Aluminum Plate for Tanker Truck
1.We make use of a precision saw with an accuracy of ±1.5mm to ensure the accuracy of the 5083 aluminium plate.
Thickness （mm）
| Thickness tolerance in different width ranges(mm)
|
＞
| ≤
| W≤1250
| 1250＜W≤1600
| 1600＜W≤2000
| 2000＜W≤2500
|
3.0
| 6.0
| +0.320
| +0.320
| +0.400
| +0.450
|
6.0
| 8.0
| +0.380
| +0.460
| +0.500
| +0.600
|
8.0
| 12.0
| +0.450
| +0.560
| +0.650
| +0.800
|
2. The excellent corrosion resistance of Haomei aluminum sheet can ensure the 10-15 years service life of the tank truck.
3. With TUV and ISO/TS16949 certificate, Haomei aluminum plate for tanker has been exported to UK, USA, Japan, Europe, Australia, Philippines,etc.
4. With advanced 1+5 hot rolling mill and thick plate production line.
5. It makes use of melt multi-stage combined purification technology. The purity of the melt can reach aviation level, providing a strong basis for the high-quality aluminum tanker plates.
Size
Alloy
| Temper
| Thickness(mm)
| Width(mm)
| Length(mm)
| Application
|
5083
| F.O,H12,H14,
H16,H18,H19,H22,H24,H26,
H28,H32,H34,H36,H38,H111,
H112,H114,H116,H321
| 0.5-500
| 20-2650
| 500-16000
| Ships,moss LNG tank, air reservoir, car skin,GIS shell
|
Welcome to visit our website to learn more or leave inquiry directly: /aluminium-5083
>>
