Mini Homemade Plastic Pipe Bottle Shredder Small Shredding Machine

Product Description

Mini Homemade Plastic Pipe Bottle Shredder Small Shredding Machine
Application Areas:
The shredder machine can easily pre-crush:
1.plastic sheets;
2.electronic waste;
3.scrap (components, subassemblies; consumables);
4.metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);
5.aluminum cans;
6.wood(wooden pallets or fruit boxes);
7.plastic(plastic bottles or canisters);
8.waste tire, rubber;
9.waste household appliances;
10.paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material);
11.textiles (rags, garments, carpet);
12.animal bones and organic waste.
Description:

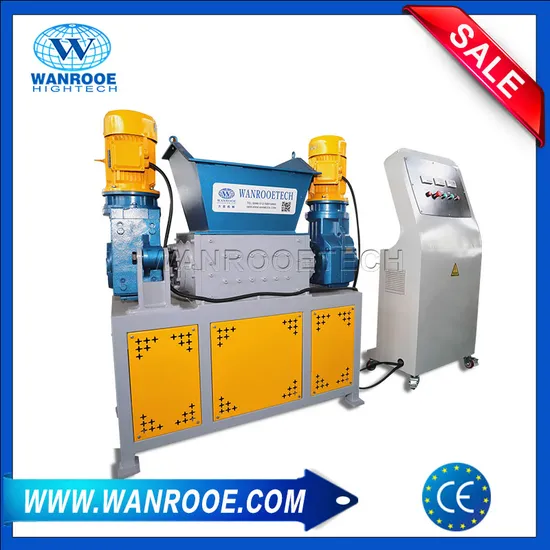

The double shaft plastic shredder machine is especially suitable for the crushing of those very-large and ultra-thick objects.(such as tires, supporting boards, packing barrels, which are usually difficult to break).
Features:
1.Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;
2.Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3.The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4.Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length, and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using a forklift truck to feed.
5.Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high-quality steel, suitable for shredding tough materials and for extra long life;
6.Depending on the requirement, these discs (blades) are available in a wide range of quantities, qualities, and shapes with the new double-shaft shredder;
7.Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8.Cutters removal and replacement can be carried out safely and simply.
9.Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost-Effective Precision, High Radial Loads.
Working Principle
The materials are fed into through feed inlet. With a high speed of rotation, the blade knives could peel and cut the materials. And then the materials are sent out through high-speed steam-flow produced by the fan blade in the knife plate.
Technical Parameters

Model	Shredder Motor Power	Shredding Chamber Size
PNSS-300	5.5	510x300
PNSS-400	7.5	510X400
PNSS-600	7.5+7.5	510X600
PNSS-800	11+11	600X800
PNSS-1000	18.5+18.5	800X1000
PNSS-1200	30+30/22+22	1000X1200
PNSS-1400	45+45	1400X1200
PNSS-1600	55+55	1600X1200
PNSS-1800	75+75	1800X1400
PNSS-2000	90+90	2000X1400

Details:
Customer Feedback:
Our Service 1. One year guarantee for whole machine
2.24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

---
