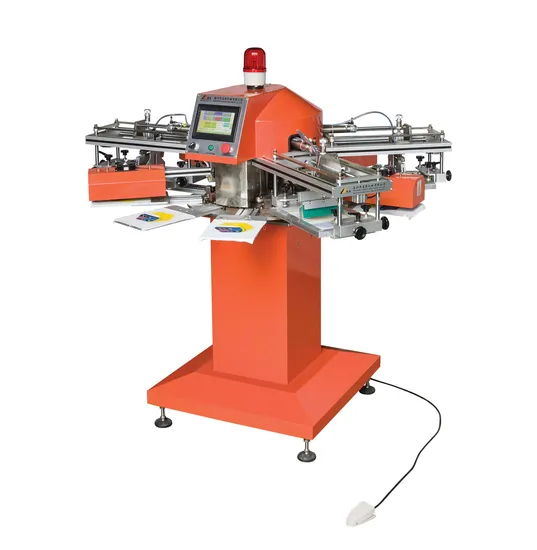

SPF Automatic Custom T Shirt Printing Machine

Product Description

Feature:
1.PLC control, human-computer interface, clear function display and easy operation.
2.Flat screen printing and dried by infrared ray. Suitable for general ink and small area screen frame printing such as T-shirt label, shopping bag, socks & etc.
3.Five up to Ten stations driven by step motor to insure stable and smooth running.
4.Angle and height of squeegee and flood blade can be adjusted to insure appropiate printing pressure.
5.With one cycle and auto function and switchable easily.
6.Work piece sensor to avoid empty station printing
7.Wide selections of optional devices, such as enlarging printing area, pneumatic clips, different sizes of platforms and etc.
Technical Parameters:

Model	SPF-1/6	SPF-2/8	SPF-3/8	SPF-4/10
Print Color	1 color	2 colors	3 colors	4 colors
Max.Printing area	150x200 mm	150x200 mm	150x200 mm	150x200 mm
Max.Printing speed	1800 pcs/hr	1800 pcs/hr	1800 pcs/hr	1600 pcs/hr
Rated power	3.0 kw	3.8kw	4.2 KW	5.0 KW
Rated voltage	1Ph/AC 220V 50/60Hz	1Ph/AC 220V 50/60Hz	1Ph/AC 220V 50/60Hz	1Ph/AC 220V 50/60Hz
Air consumption	10 Litre/min 6bar	20 Litre/min 6bar	25 Litre/min 6bar	42 Litre/min 6bar
Outline dimension	Φ1200x1450mm	Φ1500x1500mm	Φ1550x1500mm	Φ1700x1500mm
Weight	120 kg	210 kg	220 kg	300 kg

Sample:
FAQ:
Q1:We are interested in the screen printing machine,Could you quote the latest price to us?
A1: In order to recommend the suitable machine for you ,please provide following information before we quote price:
1.How many color to print will you need?
2.What's your max printing size? (Such as 500x700mm or biger or smaller)
3.What's the capacity per hour you request? (Such as 900pcs/h)
Q2:What's the MOQ, Delivery time, and payment terms?
A2: 1. MOQ: 1 set
2. Delivery time: 20 workdays after receiving T/T 30% payment deposit
3. Payment Term: T/T 30% as deposit, T/T 70% before shipment or L/C at sight
Our Service:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
Ourfactory:
Company Information
About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea's market and domestic.
