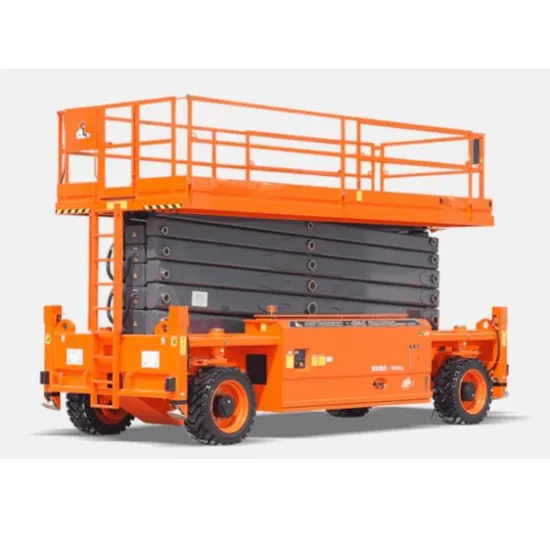

A diesel scissor lift is a type of lifting equipment that uses a diesel engine as its power source. It usually consists of a platform and a folding scissor structure that provides vertical ascent and descent. This type of lift is mainly used to provide a safe platform for workers to work at height.
The main difference between a diesel scissor lift and other types of lifts. For example, an electric scissor lift is the power source. Diesel scissor lifts use a diesel engine to provide power instead of relying on batteries for power. This makes them widely used in construction sites, warehouses, industrial facilities, stage building, maintenance and installation.
| No. | Name | Material |
| 1 | table | 3mm plate bending |
| 2 | fork support | 160*100*3.75mm Q345 |
| 3 | base frame | 160*80*5.75mm Q345 |
| 4 | rails | 5mm plate bending rail, using nylon slider to do the guide wheel, large contact surface, smooth lifting, small shaking. |
| 5 | oil cylinder | HSG90/60 4; The seal ring adopts imported brand, durable and does not leak. |
| 6 | hydraulic tubing | 2-10-43mpa double steel mesh high pressure tubing |
| 7 | Pump station | Anshan Lisheng production lifting platform special hydraulic pump station. Equipped with emergency descent valve, the platform power can be manually controlled descent; Built-in overflow valve, can prevent the upward movement of the system pressure is too high, play overload protection function |
| 8 | Power and voltage | 3.0KW / 380V |
| 9 | tires | 700-9 pneumatic tires 4 sets |
| 10 | legs | 160*80*3.75mm Q235 |
| 11 | distribution box | delixi brand |
| 12 | control form upper and lower control. | The control part is equipped with emergency safety stop to maximize the protection of property and personal safety.Use 36V safety control voltage for each operating part |
| 13 | travel switch | Shanghai ASEAN brand |
| 14 | pin | 45# round steel to make, cook black processing. Add sF-2 oil-free self-lubricating bearings between pins of each shaft. |
| 15 | Hydraulic oil | 46# Great Wall anti-wear hydraulic oil |
| 16 | lifting speed | 4-6 m/min, adjustable descending speed |
| 17 | derusting treatment | shot blasting,sand blasting derusting treatment; Removing the rust and spatter on the surface of the steel structure member can make the surface of the steel member uneven to a certain extent and increase the adhesion of the powder |
| 18 | Spraying treatment | using electrostatic powder spraying;The coating has excellent appearance quality, strong adhesion and mechanical strength, high color and brightness, durable and does not fade. |
