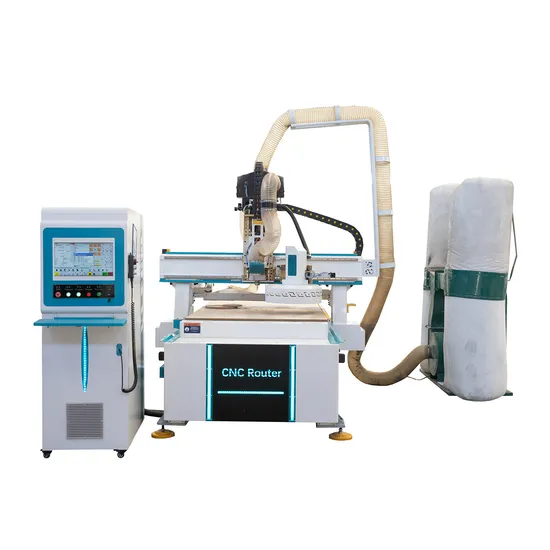

CE 1325 Wood Router 3 Axis CNC Engraving Cutting Machine 3D Woodworking Atc CNC Router

Product Description

CE 1325 Wood Router 3 Axis CNC Engraving Cutting Machine 3D Woodworking Atc CNC Router
Product Description
ATC cnc router with circular auto tool changer 12 tools, can choose 10 tools, 8 tools, 6 tools etc.
Well-known 9.0KW HSD ATC spindle, strong cutting ability, low noise, long working time. Other configuration including Taiwan LNC control system, Japan yaskawa servo motor, Taiwan Detal inverter, HIWIN guide rail, Helical rack etc.
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.
Advantage:
#Every machine will be tested for 10hs before delivery,all of them are qualified absolutely.
#Every machine was inspected for about 10 steps before delivery ,which can keep machine high accuracy,strong capacity,longer lifttime and enough stability.
Technical parameters of ATC cnc router

Standard Configurations
Model & Name	FM1325
Brand	FIRMCNC
Working Area	2500*1300mm
Table	Vacuum and T-slot table
Control system	Taiwan LNC CNC control system
Spindle	9.0KW air cooling spindle
Auto tool changer	Circular auto tool changer for 12 tools ( 6 tools, 8 tools, 10 tools for choose)
Body structure	Heavy steel welding structure (more than 10mm thickness)
Motor and drivers	Chinese Leadshine servo motor and drivers
Rail guide	Taiwan HIWIN square guide rails
INVERTER	Taiwan Delta INVERTER
X,Y axis transmission	Germany helical rack and pinion
Z axis transmission	Taiwan TBI ball screw for Z axis
Electronic components	France electronic components
Limit switch	Japan Omron limit switch Limit switches at both ends of the X & Y axis
Vacuum pump	11KW water vacuum pump
Dust collector	Dust collector with double bag x 2
Coolant Attachment	Yes
Protective sheet	Yes
Tool setting gauge	Auto
Lubrication system	Auto
Technical Parameter
Working area	2500*1300*300mm
X,Y,Z Traveling Positioning Accuracy	±0.01/2000mm
MAX. Traveling Speed	≥50000mm/min
MAX. Cutting Speed	≥25000mm/min
Commend Code	G Code
Working voltage	AC380V/3P/50Hz
Interface	USB
Rated power	At most 18KW·H
N.W./G.W.	2800KG/ 2900KG
Runing environment	Temperature:0ºC~45ºC Relative Humidity: 30%~75%

Our Advantages
Main allocation and parts picture
Application of ATC cnc router
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.
Samples of ATC cnc router
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Machine in workshop
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
FAQ
Q1. Delivery time of CNC router machine?
Standard size and configuration CNC router machine delivery time is 5 days, Customized series machine delivery time is 7 days, 4 axis and 5 axis series machine delivery time is 15-20 days.
Q2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side
3).We have our own after-sales service team,24 hours technical support by calling, video and email.
Q4. Can you please tell me if it's possible to make a 1325C machine with 240v single phase? If so what is the power consumption?
The power consumption of 240V/single phase and 380V/3Phase is same(but the power of a single phase voltage pump is limited to no more than 3kw). I recommend you choose 3 2.2kw air pumps. We will adopt some machine parts different from 380V because of 240V current will become bigger.
If you want to purchase wood cnc router machine, please feel free to contact me.

---
