Five Axis PCD Cutting Tool Grinding Machine Tool Grinder

Product Description

Product Description

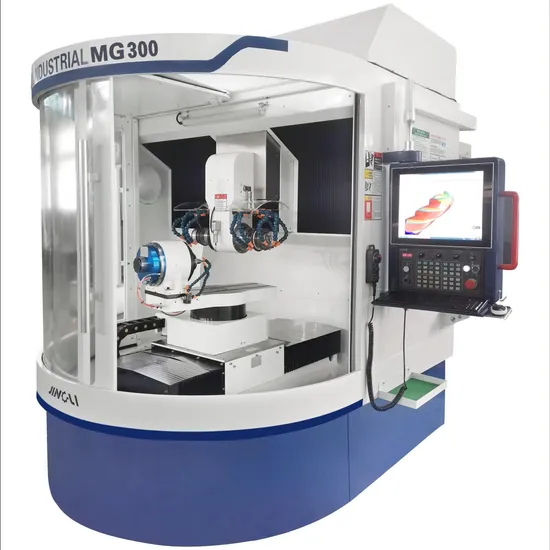

DM300 five- axis CNC tool grinder is a CNC tool production machine developed for full grinding tools. It is a five-axis and five-link machine, in which the X,Y,Z is a linear servo shaft and the A,C two axes are rotating shafts. It is specialized in grinding standard milling cutters, drill bits, reamers, non-standard cutters, molding knives and other cutting tools.It is a CNC tool production equipment with low consumption, high efficiency and high accuracy.It has extraordinary advantages in grinding high-speed steel, cemented carbide milling cutters and other material cutters.
Scope of use of DM300
Product Parameters

Technical parameter of DM 300
1	X axis travel	950mm
2	Y axis travel	520mm
3	Z axis travel	280mm
4	A axis travel	Consecutive 3 6 0 °
5	C axis travel	220°
6	X axis positioning accuracy	0.005mm
7	Y axis positioning accuracy	0.005mm
8	Z axis positioning accuracy	0 005mm
9	A axis positioning accuracy	0.005°
10	C axis positioning accuracy	0.005°
11	Repeat positioning accuracy	± 0 . 00 2 mm
12	Minimum units	0.01°
13	Spindle rated power	1 8 KW; torque 3 0 NM; ( double extension spindle)
14	Speed of main shaft	0 - 10000 RPM/min
15	Number of grinding wheels installed	6-8 pieces
16	Maximum wheel diameter	Φ150mm
17	Diameter of Grinding Wheel Rod	HSK50E
18	Taper of work-piece shank	BT50
19	Maximum grinding length	Blade length: 2 6 0 mm; total Length: 3 0 0 mm
20	Minimum handle diameter	Φ3mm
21	Maximum work-piece shank diameter	Φ32mm
22	Maximum length of work-piece	Φ200mm
23	Working pressure	0 6~0 8 MPa
24	Cooling fluid flow	85L/min
25	Total rated power of equipment	3 2 kw ( three- phase AC3 8 0 V)
26	Dimensions of equipment	2700*2300*2800
27	Total equipment weight	6000kg

Detailed Photos

Charateristics

1 It can be equipped with an advanced man-machine dialog numerical control system, which can not only use G code programming, but also use tool software. The system is safe, stable, convenient and highly resistant to electromagnetic interference. Program transmission between CNC and PC can be realized through Ethernet interface and USB2.0, and one-click start with the shortest processing preparation time, which greatly improves productivity.
2.It is equipped with 3 D simulation software, the necessary parameters of tool machining are displayed in the way of dialog box.After the parameters are input,the tool simulation can display the 3D graphics of tool and the grinding steps of machine tool.The anti-collision function of the software is used to avoid the collision in the actual process.
3. The corresponding software module can process all kinds of tools. Through the probe, the circular measurement of the workpiece and the compensation of the wear of the tool can be automatically measured, that is, the tool can be produced and the tool can be repaired.
4.It adopts heavy design, high power, gantry closed structure, with good rigidity, high strength and stability.
5.It adopts the original imported screw rod, guide rail, A-axis C-axis and key components to ensure high accuracy, high sensitivity and good stability.
6 . The rotary shaft is equipped with a finished high-precision DD motor with stable transmission, high speed and high accuracy.
7 .It can be equipped with top and simple support points for long tool production.
Packaging & Shipping
After Sales Service
1. The warranty period of the whole machine is one year for life.
2. During the warranty period, all kinds of failures are repaired and free of charge in time, and all kinds of non-man-made damage to parts will be replaced free of charge in time.
3. Outside the warranty period, the supplier provides lifelong paid maintenance services. If the parts are replaced, the supplier supplies the demand side at a cost price.
Company Profile
Demina mainly engages in mass production of CNC tool grinding machine and provides tool regrinding service. We have been in the field over 20 years. It is a national high-tech enterprise and a SRDI enterprise in Beijing.
Our company's independently developed BT-150 series PCD tool grinding machine closely combines traditional tool grinding technology with software technology. On the basis of ensuring the accuracy of tool grinding, we have achieved CNC tool grinding technology, greatly improving the work efficiency of tool enterprises and effectively reducing their operating costs.

---
