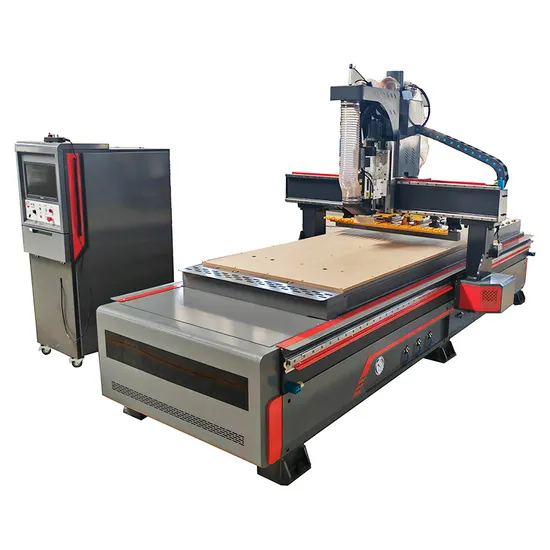

Linear Atc Wood Furniture 3D CNC Carving Machine

Product Description

Product Description
Inline way 12 cutters auto tool changing cnc router machine for engraving and carving on wood, MDF, plywood, etc, for kitchen cabinets producing.

Application
1) Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: Voice box, game cabinets, computer tables, sewing machines table, instruments.
3) Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, antibate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Product Parameters

X Y Z axis travel distance	1300x2800x200mm
feeding height	200mm
ATC tool type and number	12 PCS linear type
Spindle power	9KW air cooling atc spindle
Rail type	square rails
Control system	WEIHONG control system
Drive type	WEIZHI 1kw servo motor and driver
Transmit	X Y Oblique gear rack / Z ballscrew
Table type	Vacuum absorption
Max travel speed	50000mm/min
Working precision	0.05mm
power	AC380V±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc
command code	HPGL, G code
Machine / packing size	3.55*2.6*1.62m/ 3.67*2.13*1.86m
Net / Gross weight	2500KG

After Sales Service

1. The Whole machine Guarantee for 1 years.
2. 24 hours online service, free technical support lifetime .we hope every customer can use our machine easily and have a funof it.if you have any problems of machine in 2 or 3, 5 years , please feel free to contact us.we will always be here . 3. Machine will comes with manual instruction and operation disk (Guiding Videos) for software Installation, operation and machine's using and maintenance.
4. We will provide the consumable parts at an agency price.
5. Machine has been adjusted before delivery,pls kindly tell us If there is any other questions.


FAQ
1. What is the payment term ?
we accept T/T(30% deposit).Paypal. the Western Union, and Trade assurance.
2. How about your service after sales ? Can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine, how to use machine.
how to let machine work and so on. usually we will teach you how to do by email or by skype .
our engineer has many years of experience for cnc machine service . he can speak very good English ,
so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted,
and most important thing is we can do better serivce after sales.
we know how to fix the problem in each parts easliy. so welcome to visit to our factory
4 How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to
client s specific requirements, it would be 15 to 30 days.
Packaging & Shipping
wooden case by LCL or naked package by FCL

optional functions
Auto loading table to load material automatically
Auto unloading table with conveyor to unload the material automatically
Vertical boring unit

Certifications

---
