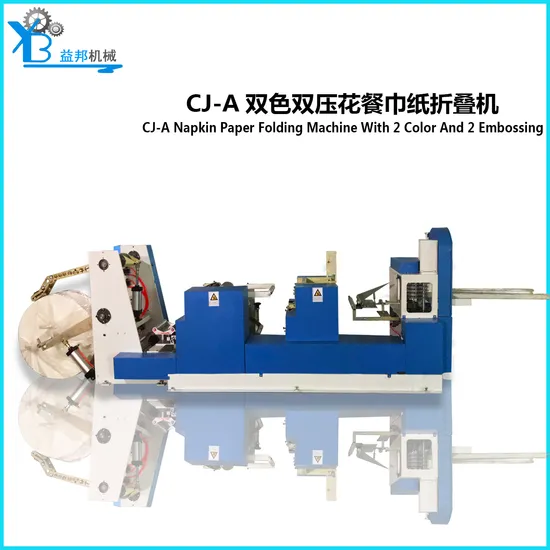

Cj-a 400 Napkin Paper Folding Machine

Product Description

Product Description
Feature:
1.Adopts professional embossing roller.
2.When the raw paper is ready , it will be sent to the embossing unit then printing unit(Optional order).
3.Machine will stop automatically if the paper jammed the folding roll.
4.With steel to rubber embossing unit, embossing can be steel to wool roller, steel roller or rubber roller( choose one).
5.The gap between two folding&cutting rollers can be adjustable according to different plies and GSM.
6.*Steel to steel embossing roller can be added on machine.
7.*Engraved embosser can be added on machine.
8. *Automatic constant temperature heating unit on embosser unit can be ordered.
Specification:

Max.width of raw paper	400mm Other sizes to be specified
Max.Outer Diameter of raw paper	φ1100mm
Open Size Of Finished Product	400*400mm Other sizes to be specified
Machine Speed	600-650pcs/min
Max.speed	680pcs/min
Raw paper Material	1-3 plies tissue paper with 18-25GSM each ply
Folding style	1/4fold (Other folding style need to be ordered)
Printing	NA/1 color/2 colors, flexo printing, water-based ink ,aniline plate
Embossing Unit	Steel to rubber/Steel to wool/Steel to Steel roller(choose one)
Counter	Electronic, pneumatic
Program Control	PLC(Delta/Siemens)
Speed Control	Variable frequency speed regulating
Total Power	2.1kw
Power Supply	380v 50Hz
Net weight	1100kg
Dimensions	3600×1500×1800 mm
Embossing Heater (optional)	Power: 1kw / 220V
Embossing Roller working temperature	60-80ºC

Good choice
1. We are a specialized in manufacturing Automatic Paper Making machine for 10 years.
2. We have a whole complete service, include researching, designing, manufacturing, selling and after-sale service. To keep the best product what you want.
3. Our factory located in Nanhai, Foshan city which near Guangzhou and HongKong. It's expedient to export for us.
4. 100% QC inspection and debugging before shippment.
5. 100% rest assured after-sales service.
Our service
Pre-sale service
Our professional sales team provide the professional consultation and best solution for actual situation and budget. Our professional researching-designing department can design the specific specification machine what you need
After-sale service
1. Warranty: 1 year quality assurance.
2.Our after-sale team have a rest assured global presence service even over the warranty period for you.

---
