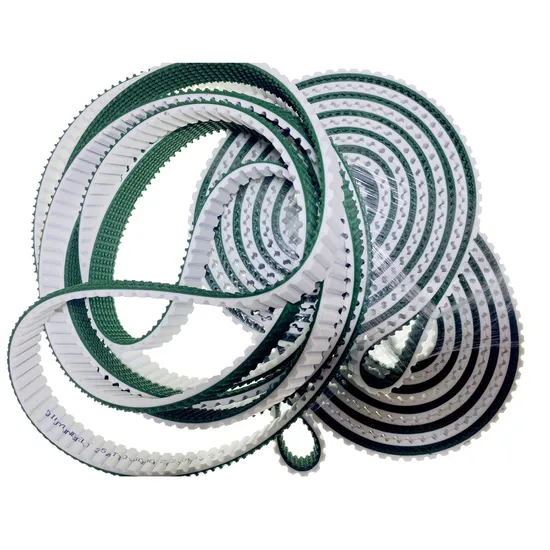

Pl/MB/Dat10/Dt10 Conveyor Rubber Timing Belt for Manufacturer Assembly Line

Product Description

Product Description
*Many kinds of rubber belts,free time to contact me please,thanks!
MAIN Applications
Food Industry, Medicine Industry, Electronics Industry, Industry, Printing Industry, Packaging Industry, Textile Industry, Other production lines, Etc
OUR SERVICE
1. Free sampling
2.100% after-sales quality guarantee
3. Recover quickly within 24 hours
4. As a factory, we can customize according to your needs and get the factory price

PU Timing Belt
* Fine size stability
* Little pre-tension
* Low noise
* High anti-wear ability
* Good dimensional stability
* Good elasticity
* The max linear velocity can reaches 80m/s
* High precision linear positioning
PVC Timing Belt
* Made of polyester fiber cloth and polyvinyl chloride glue.
* Good lateral stability performance.
* Non-toxic and pollution-free, good toughness, not easy to deformation.
* High strength, climate change resistance.
Rubber Timing Belt
* Compact structure
* High strength
* Light weight, thin thickness
* Good flexibility, small install the space
* Convenient maintenance, with better environmental adaptability
* Easy to be multi-functional
Material Option
PU \ TPU\ TPE\ PVC\ Rubber\ Stainless Steel\ Fiberglass Mesh\ Epdm\ Silicon\ Hytrel-TPEE
Also, we provide the belt surface thickened wear rubber, sponge and other special services!
If you have no quantity, noted please!
Related Belt
Advantages of Ring Belt * Made of the continuous steel core and the thermoplastic polyurethane material. *High efficiency factor and extreme tensile strength *Length may be from 1,700 to 22,000 meters. *Can be customized according to customer's specifications of different models. *About Ring Belt Special Processing: 1). Tooth surface and nylon fabric 2). Can be rolled back a special pattern grinding and drilling 3). Can cover the back of the belt thicking
About Opening Belt
*Finished with a continuous length, the middle and the sides parallel to the wire core. *Varieties of different core option, such as kevlar core, HF core, HP core and HPF core. *Production tolerance of small reliable transmission and has a dimensional stability.
Model List
*Kinds of model to choose
MXL

Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth
26MXL	33	36MXL	45	37MXL	46	38MXL	48	41MXL	51
46MXL	58	53MXL	66	54MXL	67	55MXL	70	56MXL	71
57MXL	72	58MXL	73	59MXL	74	60MXL	75	61MXL	76
63MXL	79	64MXL	82	65MXL	83	71MXL	89	72MXL	90
73MXL	92	74MXL	93	75MXL	95	76MXL	96	77MXL	97
78MXL	98	80MXL	100	81MXL	102	82MXL	103	84MXL	105
85MXL	106	86MXL	107	87MXL	110	88MXL	112	89MXL	114
92MXL	115	93MXL	119	94MXL	120	95MXL	121	96MXL	122
97MXL	123	98MXL	124	99MXL	125	100MXL	126	101MXL	127
102MXL	128	105MXL	132	107MXL	134	109MXL	136	112MXL	140
109MXL	136	112MXL	140	114MXL	143	115MXL	144	116MXL	145
120MXL	150	122MXL	153	124MXL	155	126MXL	157	128MXL	160
132MXL	165	140MXL	175	143MXL	179	144MXL	180	145MXL	181
148MXL	185	150MXL	187	151MXL	189	152MXL	190	153MXL	191
154MXL	192	155MXL	193	156MXL	195	160MXL	200	168MXL	210

T10

Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth
T10*260	26	T10*300	30	T10*330	33	T10*370	37	T10*390	39
T10*450	45	T10*460	46	T10*480	48	T10*500	50	T10*510	51
T10*560	56	T10*600	60	T10*610	61	T10*620	62	T10*630	63
T10*690	69	T10*700	70	T10*720	72	T10*730	73	T10*750	75
T10*830	83	T10*840	84	T10*850	85	T10*860	86	T10*880	88
T10*920	92	T10*950	95	T10*960	96	T10*970	97	T10*980	98
T10*1080	108	T10*1100	110	T10*1110	111	T10*1140	114	T10*1150	115
T10*1250	125	T10*1260	126	T10*1280	128	T10*1300	130	T10*1320	132
T10*1400	140	T10*1410	141	T10*1420	142	T10*1440	144	T10*1450	145
T10*1560	156	T10*1580	158	T10*1600	160	T10*1640	164	T10*1700	170
T10*1800	180	T10*1850	185	T10*1860	186	T10*1880	188	T10*1960	196
T10*2100	210	T10*2120	212	T10*2160	216	T10*2170	217	T10*2200	220

T2.5

Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth
T2.5*120	48	T2.5*145	58	T2.5*160	64	T2.5*180	72	T2.5*182.5	73
T2.5*200	80	T2.5*215	86	T2.5*240	96	T2.5*245	98	T2.5*260	104
T2.5*285	114	T2.5*330	132	T2.5*380	152	T2.5*420	168	T2.5*500	200
T2.5*600	240	T2.5*650	260	T2.5*780	312	T2.5*950	380

H

Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth
200H	40	225H	45	250H	50	260H	52	270H	54
280H	56	300H	60	315H	63	330H	66	350H	70
390H	78	420H	84	450H	90	460H	92	470H	94
480H	96	510H	102	540H	108	560H	112	570H	114
600H	120	630H	126	700H	140	750H	150	900H	180

AT5

Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth
AT5*375	75	AT5*390	78	AT5*455	91	AT5*490	98	AT5*500	100

AT10

Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth
AT10*500	50	AT10*600	60	AT10*660	66	AT10*700	70	AT10*730	73
AT10*780	78	AT10*800	800	AT10*840	84	AT10*920	92	AT10*960	96
AT10*980	98	AT10*1050	105	AT10*1080	108	AT10*1100	110	AT10*1150	115
AT10*1200	120	AT10*1210	121	AT10*1250	125	AT10*1280	128	AT10*1300	130
AT10*1350	135	AT1390	139	AT10*1400	140	AT10*1480	148	AT10*1600	160
AT10*1700	170	AT10*1860	186	AT10*1900	190

S3M

Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth
S3M120	40	S3M144	48	S3M150	50	S3M183	61	S3M192	64
S3M201	67	S3M210	70	S3M231	77	S3M237	79	S3M246	82
S3M315	105	S3M357	119	S3M418	140	S3M420	140	S3M432	144
S3M453	151	S3M459	153	S3M486	162	S3M492	164	S3M504	168
S3M510	170	S3M513	171	S3M519	173	S3M525	175	S3M528	176
S3M537	179	S3M543	181	S3M546	182	S3M549	183	S3M555	185
S3M564	188	S3M571	191	S3M573	191	S3M585	195	S3M588	196
S3M600	200	S3M612	204	S3M705	235	S3M738	246	S3M780	260
A3M717	239	D3M327	109

HTD3M

Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth	Spec.	Teeth
3M135	45	3M144	48	3M171	57	3M174	58	3M177	59
3M189	63	3M195	65	3M207	69	3M225	75	3M228	76
3M243	81	3M255	85	3M264	88	3M276	92	3M288	96
3M294	98	3M300	100	3M312	104	3M315	105	3M324	108
3M336	112	3M345	115	3M357	119	3M360	120	3M366	122
3M375	125	3M384	128	3M402	134	3M420	140	3M423	141
3M435	145	3M456	152	3M459	153	3M462	154	3M468	156
3M471	157	3M483	161	3M486	162	3M495	165	3M504	168
3M510	170	3M522	174	3M525	175	3M537	179	3M540	180
3M549	183	3M555	185	3M564	188	3M573	191	3M606	202
3M657	219	3M669	223	3M693	231	3M699	233	3M708	236
3M720	240	3M738	246	3M879	293	3M1569	523	3M2040	680

*We also have model: L/XL/XXL/T2.5/T5/T10/AT3/AT10/H/PK/PJ/PH/DMB/DT5/DR/PL/MB/DAT10/DT10/S2M/S3M/S5M/5M/HTD2M/HTD3M/HTD5M/HTD14M/HTD8M.
Factory photo
ABOUT US
Shanghai Peng Qian Transmission Equipment Co., Ltd. is professionally engaged in processing and manufacturing the full range of automotive and industrial synchronous belts: flat belt, cogged belt, v belt, round belt, timing belt, industrial belt etc. Our products accept special making as your requirement. We support custom service. Our usual delivery time is 8-15 days, the fastest delivery time is 1 day From its establishment, the company sticks to the strict management and the quality examination , which win the trust and the reputation of the customers, and builds up good commercial credit. The company to faithfulness, quality, pragmatism, innovation as the concept.
We welcome new and old customers from all walks of life to contact us.
FAQ
1. What is your sample policy?
We can supply the sample, but the customers have to pay for the courier cost.
2. How can we guarantee quality? Strict production flow and data to evaluate all steps; sheets track back each step; a pre-production sample before mass production. 3. Can we customized, OEM? Sure. Not only color, design, texture, but also labeling & marks and so on. 4. Do you set the MOQ and give any discount? We do not set the MOQ. But the more you place, the more discount you will get.

---
