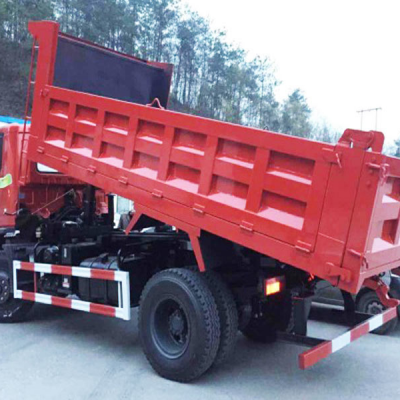

The Advantage of 5 Ton Dongfeng Dump Truck1. With sealed structure and lifting hydraulic cylinder function, the dump truck can unload the sand, gravel or demolition waste by gravity to avoid leakage.
2. With enough volume, the dump truck can load more sand, gravel or demolition waste.
3. The whole structure is solid and tight, it can be worked constantly.
4. The side board and top board can be turned automatically.
5. With mature, strong and balanced hydraulic lifting function, the dump truck’s capacity can be reached 10-20T.
6. With automatic turning angle, it saves unloading time and labor to a great degree.
7. Narrowing transporting period, improving production efficiency.
8. With saving transporting cost, the dump truck is popular for transporting.
The Specification of 5 Ton Dongfeng Dump Truck
5Ton Dongfeng Dump Truck
|
Overview
|
Name
| 5 Ton Dongfeng Dump Truck
|
Dimension(LxWxH)
| 5990x1960x2380(mm)
|
Total Mass
| 8050Kg
|
Rated Payload
| 5000Kg
|
Curb Weight
| 3050Kg
|
Passenger
| 3
|
Approach/Departure Angle
| 19/15
|
The Parameters of Chassis
|
Manufacture/Model
| Dongfeng/EQ1060TJ20D3
|
Driving Type
| 4*2 left/right hand drive
|
Wheel Base
| 3800 mm
|
Gearbox
| Six speed lever with five speed forward and one reverse, manual
|
Front/Rear Track
| 1506/1466(mm)
|
Tyre
| 7.00-16
|
The Number of Tyre
| 6+1(spare tyre)
|
Front/ Rear Suspension
| 1032/1658(mm)
|
Leaf Spring Number
| 8/9+5, 6/8+4
|
The Parameters of Engine
|
Manufacturer/Model
| Chaocai/CY4102-C3F
|
Rated Power
| 95hp/70kw
|
Fuel Type
| Diesel
|
Displacement/Capacity
| 3856ml
|
Emission Standard
| Euro3
|
Cylinder
| Straight/4/intercooling
|
Max. torque
| 340N.m
|
Velocity
| 3200rpm
|
>>
