Product Description
Product Description
Features:

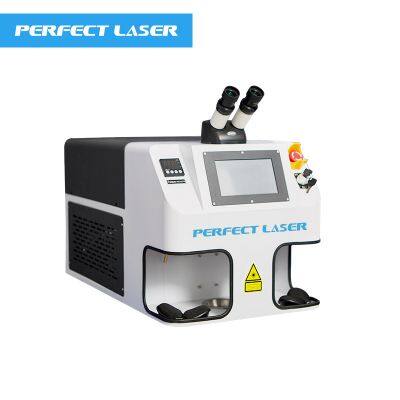

1. PE-W150A is very compact, can be put in desk, water chiller is integrated, plug and play. It has an atmospheric appearance, which can be used for spot welding of most metal materials.
2. The laser jewelry repair machine adopts British imported ceramic condenser chamber, which is resistant to corrosion, high temperature, high photoelectric conversion efficiency, life of condenser cavity (8-10 years), and xenon lamp life of more than 8 million times.
3. The use of the world's most advanced automatic shading system of the laser jewelry repair machine eliminates irritation to the eyes during working hours.
4. The jewelry laser welder adopts water-cooling machine , and the whole can be placed on the desktop for use, and the volume of the jewelry laser welder is small.
5. Ergonomic design of the laser jewelry repair machine is ergonomic and does not fatigue long hours of work.
6. Microscope and CCD double observation system, CCD is built in the control screen, reducing the external space of the jewelry laser welding machine.
7. Small thermal impact area, high welding quality, welding joints pollution-free, high efficiency and environmental protection.
8. Energy, pulse width, frequency, and spot size can be adjusted in a large range to achieve a variety of welding effects.
9. This jewelry welder can weld narrow places, deep cavity repair welding, will not damage the surrounding walls.It does not deform the mold product or sink around the melting tank.
10. Special argon protection, the control system can freely adjust the inlet and exhaust time, the supplementary welding site and base material will not be oxidative burns.
Technical data:
Product Name
| Gold Silver Jewelry Laser Spot Welding Machine
|
Model
| PE-W150A
|
Laser Medium
| Nd3+:YAG
|
Laser Power
| 150W
|
Laser Wavelength
| 1064nm
|
Pulse Width
| ≤15ms (Adjustable)
|
Pulse Frequency
| 1-10HZ (Adjustable)
|
Welding Spot Diameter
| 0.2-2mm
|
Filler Wire Diameter
| 0.1-0.5mm
|
Power Consumption
| 3KW15A
|
Power Supply
| AC220V+5% Single Phase
|
Operation Interface
| A 7-inch LCD Touch Screen Is Bilingual In Chinese And English
|
Locating System
| Microscope With Coaxial CCD
|
Cooling Typed
| Water Cooling, Water Injection Of 3.5L
|
Machine Dimensions
| 790*430*590mm
|
Machine Net weight
| 65KG
|
Work Environment
| Temperature 5℃-35℃, Humidity 5%-85%.
|
Training
| VCD training + 24 hours afters-sales service
|
Warranty
| 24 month
|
>>
