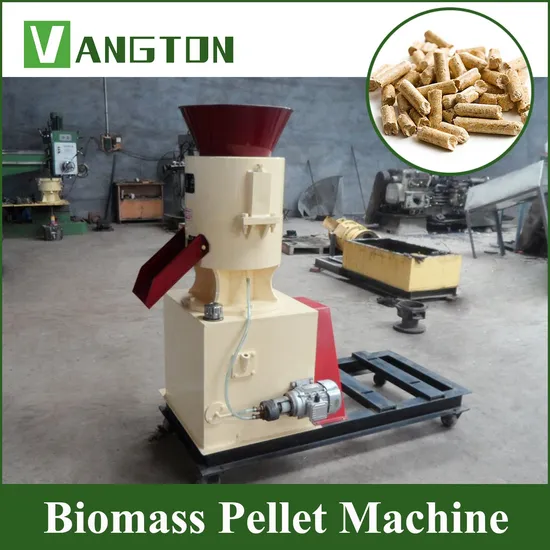

Spm 350W Flat Die Biomass Wood Pellet Press

Product Description

The Small Pellet Mill can process many different raw materials from wood, straws, grasses, energy crops, feed materials other unique and niche materials. It is widely used in biomass fuel plants, power plants, livestock farms, wood processing plants, fertilizer plants, chemical plants, food plants, cotton plants, family and small-scale farm.
For wood pellets and other biomass pellets to be used as a fuel between 40-1000 kg/h can be produced. For feed pellets up to 1500 kg/h is possible depending on the diameter of the pellets.

Model	SPM350W	Size after packing	1510*610*1550
Capacity	300-500kg/h	Weight	400kg
Power	37kw	Raw material	Sawdust, Wood shavings 15-20% water
Voltage	380V50HZ3P	Control	Electrical control

Electric pellet mills are pellet mills driven by electric motors. Generally, a pellet mill with an electric motor is smaller, quieter and easier to operate than the mills powered by other types of energies, which makes it popular with individual users. Our portable electric motor pellet mills can make pellets from sawdust, recycled paper, grass, leaves and other kinds of biomass wastes. Our electric pellet mills use three phase electricity, and provide high efficiency and stability even after a long period of use.
Adopting vertical principle, the raw materials drops down by the its own weight into the pelletizing chamber where they are compressed between the rollers and die to form pellets by going through the die holes.
Features of Electric Pellet Mills:
• Low energy consumption and high output efficiency.
• Small size, easy to install and operate.
• Movable mini pellet mill with electric motor, can work at anywhere you want. It is very convenient!
• Durable parts, long service time ensured.
• Can make pellets from a large scale of biomass wastes.
Our pellet mills have many different models. There would surely be one that meets your requirement no matter how much power you want. These machines also possess direct shafts and enclosed cabinets to make it work regardless of the landforms.
Working principle of flat die pellet mill
Adopting vertical principle, the raw materials drops down by the its own weight into the pelletizing chamber where they are compressed between the rollers and die to form pellets by going through the die holes.
Advantage and disadvantages of flat die pellet mills:
Flat die pellet mills are small in size and light in weight because of the compacted structure design.
Flat die pellet mils are easier to be cleaned and maintained and cheaper because of the design of portable rollers and die.
Flat die pellet mils are more convenient for you to monitor the process of pelletizing by watching the pelletizing chamber which make the experiment of indeterminate materials for raw materials expansion easier.
The disadvantages of pellet mills are they are not suitable for large scale pellet production. And also the gap between the roller and the die is tricky which should be adjustable according to the species of the raw materials especially the hardness of the raw materials.
OUR SERVIC
Pre-sale service
1.Our professional and experienced engineer team helps every client to find his most suitable equipment or chose of plant.
2. Any kind of legal logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
After you choose:
1. We will make drawing and show you how the pant looks.
2. Every equipment will be checked carefully before packing. Video on machine testing is available.
3. Email you the tracking no., and help to chase the container until it arrives you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment.
Q: what is your main market?
A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q: what is your producing time?
A: Producing time depends on that machines you ordered. Usually takes 45 days.
Q: what documents you can offer?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.
Q: If equipments have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you.
Q: how to install the equipments?
A: We send 1-2 engineer (100usd/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.
