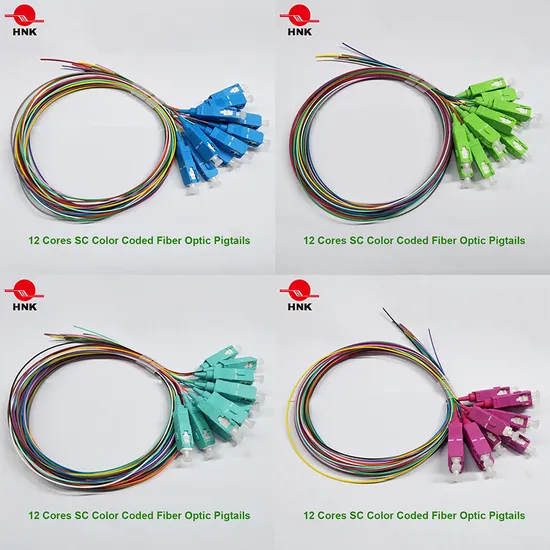

12 Cores Sc LC Sm APC Om3 Om4 Color Coded Fiber Optic Pigtail

Product Description

Fiber optic pigtails are used in permanent connections between fiber patch panels and incoming cables / single
blown fibers. Our offers a wide range of pigtails, designed and manufactured for demanding network applications.
It comprises of multimode and singlemode. Pigtails are pre-constructed with connectors. Connector options include
small form factors such as LC, MU as well as SC, FC and ST. These are based on 900μm tight buffer cores and
suitable for internal use only inside suitable Fiber Management Systems.
Standards Compliance
. ISO/IEC 11801
. TIA-568-C.3
. EN50173 -1,ANSI TIA/EIA 568B
Features
. Constructed from high quality connectors and standard fibers
. Wide range of connector and fibre options available
. Tight Buffer 900µm buffer internal construction as standard
. Custom lengths, connector combinations and polishes are available.
. Other cable diameters and fibre types available on request
Specifications

Connector Type	SC, LC, FC, ST, MU
Fiber Type	G652D, G657A, OM1, OM2, OM3, OM4
Polish or Ferrule Interface Type	PC, UPC, APC
Jacket Material	PVC or LSZH
Cable Diameter	0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Color (Multimode: OM1 & OM2)	Orange
Jacket Color (Multimode: OM3)	Aqua
Jacket Color (Multimode: OM4)	Aqua or Purple
Jacket Color (SingleMode: G652D & Gb57A)	Yellow
Insertion Loss (dB) Max.	≤0.3
Return Loss (dB) Singlemode	PC≥45, UPC≥50, APC≥60
Return Loss (dB) Multimode	PC≥35dB
Note:Other Jacket colors may be available upon request.

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: PT-AA-BCDE
Ordering Guide

AA	B	C	D	E
connector Type	Fiber Type	Length	Jacket Material	Jacket Color(CL)
FP,SP,SA,LP	OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A	01=1M 02=2M 03=3M 10=10M	1=PVC 2=LSZH	Yellow=YE Orange=OR Aqua=AQ Purple=PU

Ordering Sample

Part Number	Description
PT-SP-OM1-031OR	SC/PC Multimode 62.5/125 Fiber Optic Pigtail, PVC Jacket, Orange, 3M.

---
