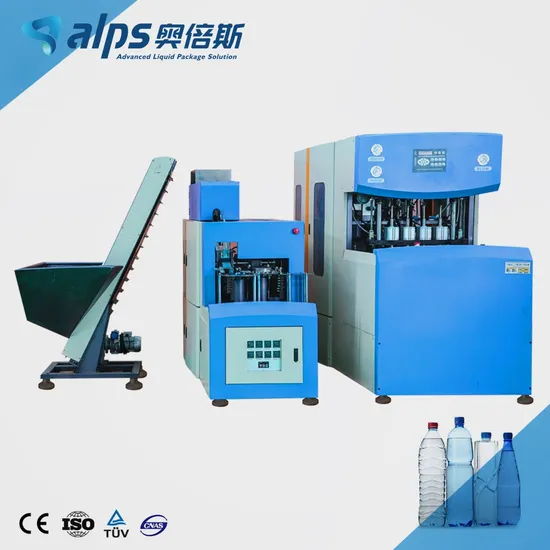

Half Automatic Pet Bottle Making Machine / Pet Stretch Blow Moulding Machine

Product Description

Half Automatic PET Bottle Making Machine / PET Stretch Blow Moulding MachineSemi automatic PET stretch blowing machine is suitable for producing PET plastic containers and bottles from 0.1L to 20L. It is widely used to produce the mineral water bottle,carbonated drink bottle,Juice bottle, pesticide bottle ,oil bottle,daily chemical bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.
Application:
Technical Parameter :

Specification for PET stretch blowing machine
Model	BL800	BL1500	MGSA4
Bottle sizes	0.1L-2L	0.1L-2L	0.1-2L
Capacity(bottles/hour)	800 bph	800 bph	2000~2200 bph
Application	PET stretch blowing machine
Total power	15kw	25kw	35kw
Max bottle height	<310mm	<310mm	<<400mm
Hp air compressor	1.0 m3/min 30kg	1.2 m3/min 30kg	2.4 m3/min 30kg
Machine sizes	1.9*1.3*2m	2.2*1.3*2m	3.5*1.3*2m
Weight	500kg	800kg	1500kg

Main Features
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate . Auxiliary equipment description
High Pressure Air Compressor Function :To provide air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure
Air Cooling Dryer Function :To remove the moisture from the compressed air and lower temperature of the compressed air in the heat ex-changer.
Air filter Function: To clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.
Company introduction
Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Certification :
Our compnay complies with ISO9001:2000 Internation quality management system,also carries out the modern enterprises management systme ,to executes quality control during the processes of producing ,wins customer' recognition by the high quality products and services.

---
