Power Electrical Low Frequency Ei57 PCB Encapsulated Resin Potting Isolation Transformer

Product Description

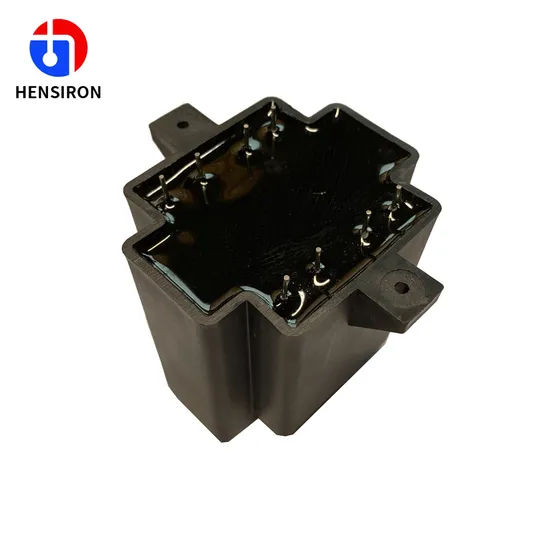

Product Description EI potting transformer is designed and manufactured with high-quality silicon steel sheet with low power consumption, which has the characteristics of small no-load loss, high efficiency and low temperature rise. This model has a variety of installation methods such as pin type, bracket type, and dip type.

NO	CORE MODEL	CAPACITY (VA)	INPUT VOL.	OUTPUT VOL.	FREQ.	DIMENSIONS			INSTALLING SIZE		W.T.(g)
						A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
1	EE20-6.5		230-115-120V	2-110V	50-60HZ	23	22	15.5	15	5	27.5
2	EE20-10.5					23	22	20	15	5	37
3	EI30-5	0.5-0.6VA				32.5	27.5	20	20	5	43
4	EI30-10.5	0.8-1VA				32.5	27.5	21.8	20	5	75
5	EI30-12.5	1.2-1.5VA				32.5	27.5	24	20	5	85
6	EI30-15.5	1.8-2VA				32.5	27.5	27	20	5	106
7	EI30-18	2.3-2.5VA				32.5	27.5	29.5	20	5	117
8	EI30-23	2.8-3.2VA				32.5	27.5	29.5	20	5	148
9	EI38-13.6	3.2-4.5VA				41.5	35.5	28	25	5	167
10	EI42-14.8	5-6VA				45.5	38.5	32.5	25	5	230
11	EI42-20	8-9VA				45.5	38.5	38	25	5	298
12	EI48-16.8	10-11VA				51	43	35	27.5	5	340
13	EI48-20	12-13VA				51	43	40	27.5	5	405
14	EI54-18	16VA				57.5	49	40.5	30.5	5	510
15	EI60-30.5	25VA				64	54	55.5	32	5	900

Company Profile HENSIRON was founded in 2008. After more than ten years of development and growth, HENSIRON has a professional R& D team, excellent quality process control system, abundant flexible production experience, efficient customization service capabilities and international customers all over the world. Back to 2008, HENSIRON established a Research and Development Center for components, which opened up the business of external design and development of components.
With the accumulation and expansion of business, in order to meet the needs of international customers for customized production of high-quality products and of international customization services, HENSIRON has built two major production bases in Wuxi, Jiangsu Province, and Dongguan, Guangdong Province. In Changzhou City, Jiangsu Province, HENSIRON has set up international affairs′ service centers specially to meet international customization needs.
In terms of plant production management, HENSIRON has gradually implemented ISO 9001 quality assurance system standard, providing Industrial Frequency Transformer, intermediate frequency transformer, audio transformer, ultra-audio transformer and high frequency transformer, various frequency bands of electronic transformers and coils, common-mode inductors, filter inductors, UPS inductors, SMD inductors, SMT inductors, various custom inductors, bar inductors and other magnetic components, as well as various resistors and Load Banks etc. To all industries in the world.
Certifications The power transformers, audio transformers, pulse transformers, switching power transformers, transmission transformers, communication transformers, special transformers, encapsulated transformers, and various customized resistance and inductance units or components we provide are all authorized and certified, and our customers highly recognize and evaluate our product quality.
More Products We also provide industrial frequency transformer, intermediate frequency transformer, audio transformer, ultra-audio transformer and high frequency transformer, various frequency bands of electronic transformers and coils, common-mode inductors, filter inductors, UPS inductors, SMD inductors, SMT inductors, various custom inductors, bar inductors
→Any Special Customized Transformer, Please Click Here to Talk With Us !
Packaging & Shipping HENSIRON adheres to the business philosophy of "To Live with Trust, To Develop with Quality ". We, HENSIRON people, always firmly put product quality in the first place. We know that, only under the premise of guaranteeing product quality, HENSIRON can continue to grow and grow - -- the development of HENSIRON is always on the premise of guaranteeing quality.
Why Choose Us HENSIRON adheres to the business philosophy of "To Live with Trust, To Develop with Quality ". We, HENSIRON people, always firmly put product quality in the first place. We know that, only under the premise of guaranteeing product quality, HENSIRON can continue to grow and grow - -- the development of HENSIRON is always on the premise of guaranteeing quality. Over the years, core customers have highly recognized and evaluated the quality of power transformer, audio transformer, pulse transformer, switching power transformer, transmission transformer, communication transformer, special transformer, encapsulation transformer, various customized resistance and inductive unites or components provided by HENSIRON. With this trust and trust from customers, HENSIRON can survive and continue to grow.
Product Application With wide range of applications, low frequency transformers are used in medical equipment, instrumentation, air conditioning, Microwave ovens, smart refrigerators, washing machines, household electricity meters, drying equipment, etc.

---
