Customized Cold Feed Rubber Vented Extrusion Machine for Rubber Products

Product Description

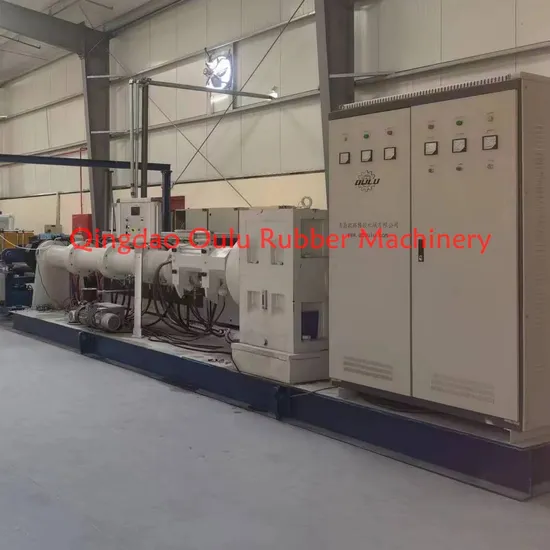

Cold Feed Rubber Vented Extrusion Machine
Product Description Main application:
This extruder is mainly used to extrude various foam or solid rubber pipe, sheet, handle, sleeve, profile and sealing strip.
Main composition:
Motor, reducer, feed device, barrel, screw, head, temperature control device, vacuum pump, electrical control system and machine frame, etc..
Characteristics:
Screw is divided to feeding section, compression section, throttling section, exhaust section and extrusion section. Throttling section adopts whorl which is shallow slot, equidistance and isobathic; it can makes rubber compound get higher shear and stable conveying process, meanwhile, it also increases exhaust effect.

		XJLP-75	XJLP-90	XJLP-120	XJLP-150	XJLP-200
Screw diameter (mm)		75	90	120	150	200
L/D ratio		20:1	20:1	20:1	20:1	20:1
Screw rotation speed (max.) (r/min)		60	55	45	42	42
Motor power (kw)		45	55-75	110-130	185	280-315
Production capacity (max.) (kg)		100	180	360	500	800
Heating/cooling power (kw)		18	18	21	24	27
Vacuum pump power (kw)		1.5	1.5	2.2	2.2	3
External dimension (mm)	L	2580	2820	4530	5450	7000
	W	1200	1570	1160	1420	1850
	H	1280	1310	1360	1460	1680
Weight (kg)		2000	3500	6000	10000	22000

Company Profile Qingdao Oulu Rubber Machinery Co., Ltd was founded in 1990s. We are a special manufacturer engaged in producing rubber, plastic and rubber&plastic foam machinery.
We're committed to R&D, production and sale of rubber and plastic foam machinery. Our main product is rubber plastic foam production line which can be used to produce foam insulation pipe/sheet, yoga mat, mouse pad, sealing strip, handle, sleeve, profile, common rubber products, etc.. We also can produce prefabricated rubber track production line, XPE chemical cross-linking foam production line, various types of extruder and mould, rubber vulcanizer, etc..
Boasting more than twenty years of machinery production experience and production management team, we continuously apply ourselves to R&D and innovation of products, so whether machinery manufacturing or technology and formula are improving. We can provide professional machine design and complete set of formula and technology according to client's different requirements. We also provide long-term technical support.

---
