| US$11,000.00 | 6 Pieces (MOQ) |
| HAN-190 | ||
| No. | NAME | Type and performance specifications |
| 1 | Wall board | We adopts HAN special heavy enhanced, according to TSUDAKOMA Drawing,HT220-230 standard material, large CNC precision machining |
| 2 | Gear in the large box | AdoptingTaiWan(TTG)gear,ultra-quite,wear-resistant,low vibration and high precision |
| 3 | Bearing in the large box | Bearing in the large box is swedish SKF, Bearing out of the large box made in Japan. |
| 4 | Beating up shaft | Adopt special treatment of solid beating up shaft, centralized oil lubrication in the support sleeve, add in weft counter weightbalancesystem(Haijiapatent:201220718493.9), optimization of beating up angle, the beating up more powerful and stable, cloth smooth. |
| 5 | Slay | SUS304 stainless steel reinforced and polishing processing slay at the top brand in China, achieve cloth smooth. |
| 6 | Stripe | Tianqi stripe, For 102 double stick, strengthening take-up. |
| 7 | Plastic stocks | New type and high quality plastic stocks |
| 8 | Beam | A number of optimization design on the basis of TSUDAKOMA ZW-410, the beam before and after the five angle pipe, steel material supply, before and after the beam with thickened angle.Especially before the beam on Haijia, unique design, draws on the advantages of air jet loom beam, making solid beating up shaft is more stable. |
| 9 | Electronic clip yarn | Electronic clip yarn |
| 10 | Suction pipe | ∮76mm,thickness 6mm,sus304 stainless steel. |
| 11 | Cross beam | Heavy and lengthen treatment |
| 12 | Tension spring | ∮12mm |
| 13 | Panel | HAN Special type |
| 14 | Let-off and take-up device | Domestic electronic let-off and take-up |
| 15 | Temple bar,guide | HA-9010 Special type ,3mm stainless steel |
| 16 | Temple | Five ring three rows of fine needle puncture (0.3mm) under the pressure of Temple (made fine denier fabric cloth smooth) South Korea Renhe or Jilong brand. |
| 17 | Leno parts | Taiwan production assembly (slide seat:Stainless steel, low noise ear wire assembly, running smoothly, long service life).. |
| 18 | Press roll | New press fabric service,press roll 40#,equal tension take-up |
| 19 | Main motor | The Haijia special power of 3.0KW red flag.Save electricity,start fast,low noise,little park,long life and other advantages(self-purchased Japan NACHI bearing) |

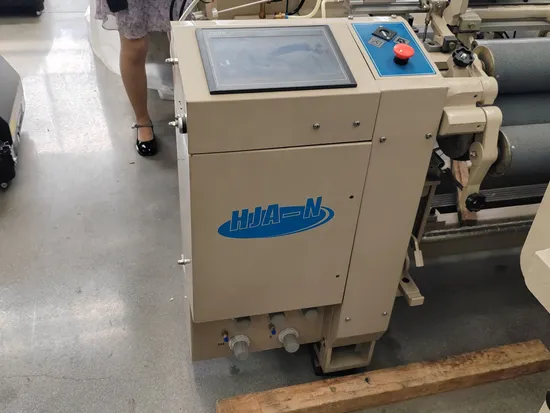

| 20 | Electronic control system | Nanjing BAINA Brand..(electronic control,electronic let-off and take up,feeder triad control ,with 7 inch electronic display) |
| 21 | Measuring | Adopting double jet Electronic length measuring .Adopting double Electronic measuring |
| 22 | Light detection weft | Light detection weft, plus plug signal amplifier. |
| 23 | Code | Electronic |
| 26 | Nozzle | Korea MDH |
| 27 | One way valve | Japan AWA valve |
| 28 | Oil seal | Made in Taiwan |
| 29 | Cutter parts | Taiwan bearing,scissors,scissors spring,improve efficiency. |
| 30 | Stabilized tank | Double filter,bucket type. |
| 31 | Take heald level | American DuPont material production, wear, long service life. |
| 32 | heald frame | Haijia designed high quality strengthend frame Customer can match by themselves. |
| 33 | Painting | TSUDAKOMA yellow color, two times over the primer, topcoat, special paint production line, improve the anti rust effect. |
| 34 | The whole machine of Stainless steel screw | Taiwan dongming SUS304 stainless steel screw,not rust |
| 35 | Stainless steel screw | Jin Yi brand in Taiwan |
| 36 | Waterproof device | Thickened waterproof curtain, TSUDAKOMA style transparent waterproof cover plate. |
| 37 | False twist spindle | Pull type |
| 38 | Weft stand | Double nozzle standard weft stand. |
| 39 | Oil supply | Centralized oil supply including beating up shaft and shedding parts |
| 40 | Swing degree | null |
| 41 | Casting | Identify quality supplier, according to the standard drawings, guarantee the material and weight.. |
