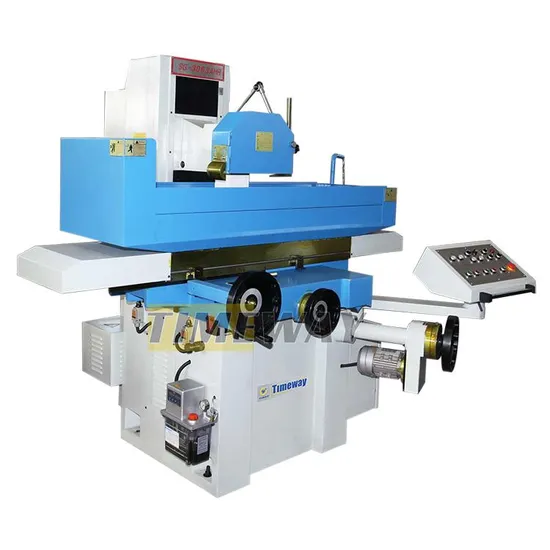

Hydraulic Surface Grinding Machine (Saddle Moving Type) / Precision Surface Grinder

Product Description

Saddle Moving Type Surface Grinder
Product Description
* SG series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
Product Parameters

Specification	Unit	SG-3063AH SG-3063AHR SG-3063AHD
Table size	mm	305x635
Electro magnetic chuck size	mm	300x600
Distance from spindle to table	mm	580
Table cross travel	mm	340
Table longitudinal travel	mm	765
Loading capacity (include chuck)	kg	270
Longitudinal feed speed	m/min	5-25
Table cross intermittent feed rate	mm/str	0.1-8
Table cross rapid feed speed	mm/min	990
Table cross feed of handwheel	mm/gra	0.02
Wheelhead vertical intermittent feed rate	mm/str	AH: -; AHR: -; AHD: 0.005-0.5;
Wheelhead vertical rapid feed speed	mm/min	AH: -; AHR: 650; AHD: 480;
Wheelhead vertical feed of handwheel	mm/gra	0.005
Spindle speed (50/60HZ)	rpm	1450/1750
Grinding wheel size	mm	350x40x127
Main motor power	kw	4
Machine dimensions (LxWxH)	cm	290x220x190
Package dimensions (LxWxH)	cm	235x222x221
Machine weight	kg	2800

Accessories

Standard accessories	Optional accessories
· Electronic handwheel · Closed safe guard · Working lamp · Balancing arbor · Standard grinding wheel · Electrical magnetic chuck · Built-in magnetic chuck controller · Coolant tank · Wheel flange and extractor · Wheel dresser stand · Operation manual (English) · Leveling wedge and screw · Lubrication systemTool box&tools	· Diamond pen · Extra wheel flange · Rear splashing guard · Oil tank guard · Dust exhaust · Parallel wheel dresser · Radius dresser · Angle dresser · Side dresser · Sinusoidal magnetic table · Electronic handwheel · Magnetic separator · Paper filter

Detailed Photos
The guideway is coated with turcite and precision hand scraped, move smoothly and keep the accuracy long life.
The worktable is driven by imported hydraulic valve unit, realize smoothly motion without shocking.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
Ready for shipment
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories.
FAQ
Q: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience;3 . Exported more than 60 countries;4 . CE, ISO Certificates;5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);6 . 12 months quality warranty;7 . Oversea engineers available for problem resolving;Q: Do you have QC or any safety standards for your machinery?A: yes, we have established a highly strict quality control department to guanrantee good quality.Q: What's the MOQ?A: 1 set (Only some low cost machines will be more than 1 set )Q: What about the payment terms?A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;(2) Irrevocable LC at sight;(3) Western Union, MoneyGram, etc.Q: How about the warranty?A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
