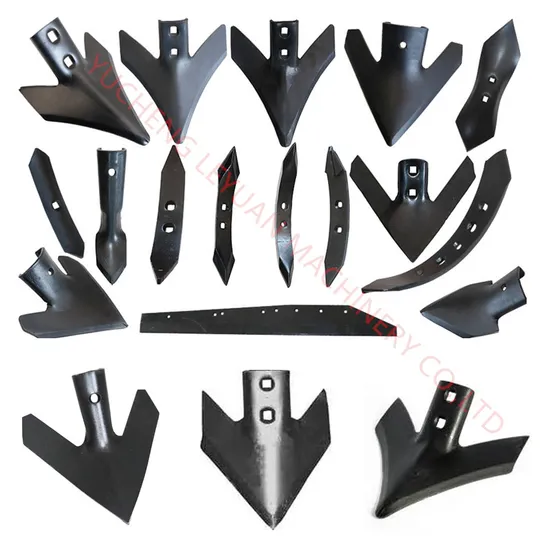

Tillage Replacements Cultivator Sweep Blades for Agricultural Cultivator

Product Description

Product Description
65Mn carbon steel discs:
Hardness: 38~45HRC
The automatic control system in heat treatment ensure the relative stability of hardness.
These feature superior corrosion resistance with less maintenance requirements. The durable finish also results in providing longer service life of disc blades as well as more wear resistance while being used on soil. Comparing boron steel discs ,It is lower cost with steady quality.
Boron steel discs:
Hardness: 48-52 HRC
The relative stability of hardness is ensured by the automatic control system in heat treatment
This hardness ensures flexibility and the ability to absorb impacts without breaking, providing the disc a longer life-span, even in the most severe soil conditions. Comparing 65Mn discs , boron steel discs combines toughness and flexibility that will enhance the life of the disc blade.It is currently the best in this industry,while it is more expensive.
Product Parameters

Material:	65Mn,Boron steel
Hardness:	HRC38-45, HRC48~52
Thickness:	3.0-12.5mm
Size/dimension:	12"-44"(300mm-1120mm)
Edge of Disc Blade:	Round or Notched.
Shape:	Flat,Concave or Wavy
Production Capacity:	5 Million pcs annually
Colors:	Blue or black ( matt or bright), Made to your order
Hole Type:	Square, Round, Hexagon, Clover Leaf, Optional
Working Depth:	200mm, 300mm
Working Width:	3.4M ~ 6.2M
Packing:	Non-fumigation wooden case, metal case according policy of different regions
Feature/Characteristic:	Highest wear life due to special edge making process

Main Specification

Common Specifications of Disc
Dia.		Concavity	Thickness
mm	inch	mm	mm
255	10	12	3
305	12	19	3
330	13	25	3
355	14	38	3
410	15	38~50	3
430	17	57	3,4
460	18	38~60	3,4
480	19	57	3,4
510	20	44~63	3,4,5
535	21	63	3,4,5
560	22	60~85	4,5,6
585	23	75~90	4,5.6
610	24	75~95	4,5,6
660	26	86~115	5,6,7,8
710	28	100~130	5,6,7,8
760	30	120~135	6,7,8,10,12
810	32	120~140	8,10,12
910	36	120-200	8,10,12
960	38	120-200	8,10,12

Manufacture Process

Company Profile
Established in 2012, Yucheng Leyuan Machinery Co. Ltd, is a professional agricultural machinery manufacturer integrating research, development, production, sale and service of agricultural machinery. LeYuan has advanced machining, welding, forging, shaping,heat treatment processing technology.Located in Yucheng City Shandong Province, Leyuan company covers an area of 22000 square meters, in which standard workshop floor space covers more than 6000 square meters. The company owns more than 60 employees, engineer and quality control personnel.Our main products include disc harrow, disc plough, cultivator, share plow, farm trailer, grass mower, seeder, harvester, discblade, break shovel and other agro parts. Especially in heat treatment of the blade, we have accumulated rich experience, the production of blade with excellent technology and reliable quality has won the customer's widely recognized.With the market and the user's actual demand, Leyuan machinery is constantly trying to promote the integration of agricultural machinery and agricultural arts. The company based on China local market and exported to the United States, Australia, Mexico, Thailand, Pakistan, Indonesia, Morocco, Nigeria, South Africa, Sudan, Taiwan, and other countries and regions.

Our Advantages
Direct factory of various kinds of disc plows/ploughs ,agro disc harrows ,cultivator ,trailers ,mowers ,seeders,threshers and so on, and the related agricultural machinery spare parts. With complete production line of material cutting,heat treatment, hot forging ,machining,welding ,powder coated painting, you will find the best choice between price and quality from Yucheng Leyuan Machinery co.,ltd
FAQ
Q1: Are you manufacturer or trading company ?
A: we are direct factory , welcome to our factory for inspection.
Q2:Where is your factory located?
A: Yucheng city ,Shandong province,very near to Jinan city .
Q3: Can I get some samples?
A: Yes,only if it is small part and you would like to pay the courier cost. Regarding the big parts or machines,small trial order is suggested.
Q4:Can we put our logo on it ?
A:Yes, of course , we can do it according to your detailed requirements.
Q5: Can we visit your factory to test quality before delivery?
A:Yes, of course ,we sincerely welcome you to visit us at your convenient time.
Q6: Warranty.
A:1 years warranty time since it arrives your destination port .
Q7: Payment.
A:30%TT as the first payment, the balance before shipment..
L/C at sight.

---
