Gusu Automatic Chocolate Chip Depositor for Efficient Chocolate Chips Making

Product Description

Product Description

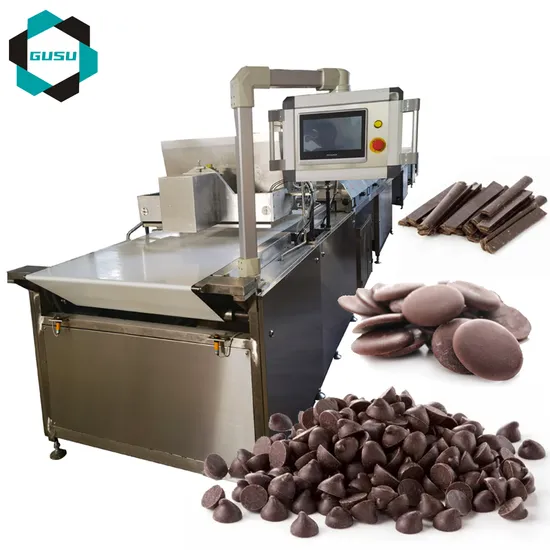

Chocolate Chips Depositor
Product Description
Gusu Chocolate Chip Depositor allows for the deposit of chocolate and chocolate compound drops and chips in a variety of shapes and weights, ranging from 0.1 to 5 grams. These types of products are ideal for industrial supply and subsequent melting, for decorating and for use in other products, especially cookies and ice creams.
The Chip Depositor Line includes a double-jacketed depositor head equipped with temperature control and a fixed-speed agitator. The movements of the head are coordinated with the belt used to collect the deposited products. The line also includes a belt-lifting system for deposit enabling diverse drop shapes. The drops are forwarded into cooling tunnel immediately after deposit.
Servo-controlled or Pneumatic-Driven depositor pistons enhanced measuring precision. Optimum tank size and double-jacketed water circulation system for efficient control of deposit temperatures. Easy to remove and clean chocolate agitator and tank. Stainless steel used for operating parts and all components that come into contact with the product. User-friendly screen with specially designed PLC control all of the operating parameters.
This highly versatile machine can be easily adapted to meet new products' needs, both in terms of design and of changes in shape or weight, simply by replacing the distributor board, a process that takes minutes to complete. It is available in a variety of belt widths, ranging from 400 to 1200mm.
Technical Parameter

Model	Belt Width(mm)	Drop Frequency(times/min)	Tunnel Temp.(ºC)	Total Power(kW	Weight(kg	Overall Size(mm)
QDJ600	600	12-15	0-10	9.02	1500	14000*950*1750
QD800	800	12-15	0-10	10.52	2000	16000*1150*1750
QDJ1200	1200	12-15	0-10	22.2	2500	16000*1550*1750

Company Profile
FAQ
1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3. Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to your request, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better
2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit sincerely hope our cooperation.

---
