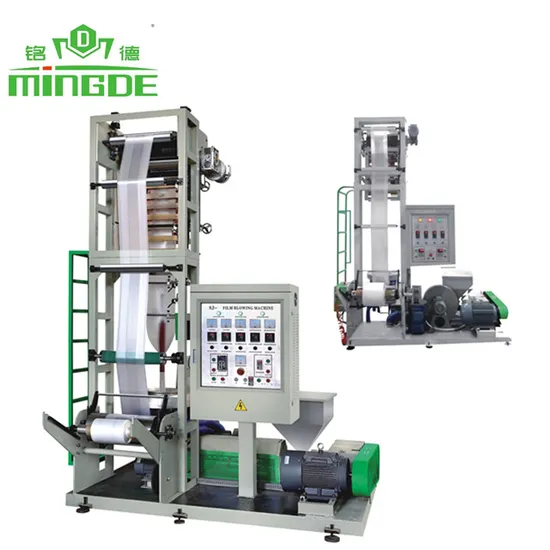

Mini Plastic HDPE Extruder Making Small Film Blowing Machine

Product Description

Mini Type Film Blowing Machine
Mini type film blowing machine
High accurate mould and effective air colling system
High precision correct errors system
The machine body is mode of square steel, with frequency converter contolled traction, friction single winder and elevator, which is suitable for blowing HDPE/LDPE industrial and agriculture film.

Model	MD-HM35	MD-HM45
Workable Materials	HDPE,LDPE/LLDPE
Max.Film Width	400MM	500mm
Max.Extrusion Output	HDPE:35kg/hr LDPE:40kg/hr
Blown Film Thickness	HDPE:0.008-0.0.08mm LDPE:0.02-0.10mm
Extrusion Unit
Hard-face Gear Case	133	146
Screw Diameter	Φ35mm from Zhoushan China	Φ45mm from Zhoushan China
Screw Material	38 CRMOALA 38 CRMOALA
Barrel's Material
Screw L/D	30:1	28:1
Main Motor Power	7.5kw	11kw
Frequency inverter	From Delta
Cylinder Cooling	250wx1	250w×2
Thermo Control (zone)	2	2
Extrusion Die
Die Size	HD:50mm	HD:60mm
Screen Changer	Standard Manual	Standard Manual
Thermo Control (Zone)	2	2
Air Ring(mm)	Φ470	Φ620
Cooling Blower(kw)	1.1	1.5
Center Steady Stick	1 pcs
Take-up Unit
Traction Roller Width	φ138×450mm	φ138×550mm
Embossing Roller Width	350mm	450mm
Take up Motor(kw)	0.75
Take Up Speed	10-80m/min
Winding Unit
Rewinding Type	Single Rewinder.Surface Friction Winder
Rewinding shaft	Air expanding shaft
Roller Width	450mm	550mm
Winding Motor	10N.M	1.1kw
Rewinding Speed	10-80m/min
Voltage	380V,50HZ,3PHASE
Machine Dimension	1400x2000x3200(mm)	1450x2280x3200(mm)

Optional Device for Mini type film blowing machine:
1. Auto Loader
2. Corona
3. Automatic Air Supply Device
Company and workshop show for Mini type film blowing machine:

Service:
Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.

FAQ:
1.Trade company or manufacture?
we are a manufacture of plastic machinery such as: film blowing machine, printing machine ,bag making machine and recycling machine.
2.How to visit our factory?
Some lines you can choose. First, you can come to guangzhou air port, then by air to wenzhou air port, call us we can go whenzhou air port to pick up you.
Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train Ruian station then we go air port or train station to pick up you.
3.What about the warranty?
All our machine have one year warranty. if the machine parts broken because the quality problem, we can provide the spares for you by free.
4.What about the traning?
We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operation.
we also can send engineer to your factory ,teach your workers how to run the machine. but you need pay all the fees including: round tickets , food and living.
5.About the machine shipping?
Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.
6.About the machine packing?
Our machine normal use the plastic packing. if you need wooden case packing and require fumigation, before order you need tell us so we arrange for you.

---
