Wardmay H. 264 4chs 5 in 1 Ahd DVR with 10′ ′ LCD DVR Screen Security CCTV System

Product Description

Wardmay H.264 4chs 5 In 1 AHD DVR with 10.1'' LCD DVR Screen Security CCTV System
Features:
* Support 4ch 1080N unreal-time encoding
* Support XVI,AHD, TVI,CVI, CVBS, IP video input
* Support VGA maximum 1080P output, HDMI up to 1080P output
* Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, Alarm center, etc
* Support the Onvif protocol
* Support WEB, CMS, VMS, MYEYE Platform
* Mobile phone remote monitoring (iOS, Android)
* Cloud services, P2P, alarm information push to phone
* Support for more than twenty languages
Specifications:

Product Name		Wardmay H.264 4chs 5 In 1 AHD DVR with 10'' LCD DVR Screen Security CCTV System
Model No.		WDM-DVR6504AL
System
Processor		Hi3520DV200
Video
Video compression		H.264
Encode		4*1080N@15fps(5 in 1)
Decode		4*1080N@15fps(5 in 1)
Multi-mode		Analog: 4*1080N
		Hybird: 2*1080N(analog) + 2*720P(network)
		IP: 8*1080P; 12*960P
Playback		4ch
Audio
Audio compression		G.711A
Management
Record mode		Manual>Alarm>Motion detection>Timing
Inquire mode		Inquire by Time/Calendar/Event/Channel
Storage mode		HDD Storage, Network Storage
Backup		Network, USB, SATA
Interface
Video Input		4*BNC (Support Coaxitron)
HDMI output		1*HDMI (MAX: 1080P)
VGA output		1*VGA (MAX: 1080P)
Audio In/Out		1/1
Alarm In/Out		0/0
Ethernet		1*10/100Mbps Ethernet port, RJ45 port
PTZ Control		1*RS485, Support for multiple PTZ protocol
USB		2*USB 2.0 ports
HDD		1*SATA interface (Up to 8TB)
General
Power supply		DC12V 2A
Consumption		<10W(Without HDD)
Working temperature		0ºC--+55ºC
Working humidity		10%--90%
Weight		Mini 1U
Dimension		287mm(L)* 230mm(W)* 57mm(H)

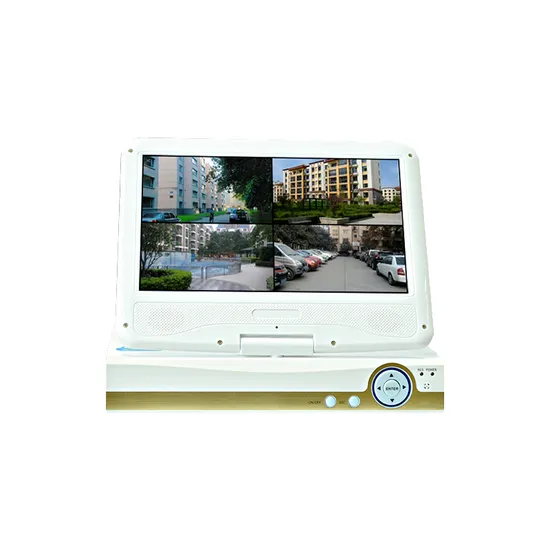

Product Pictures:
How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated

Payment Terms
T/T, Western Union
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;


Lead Time:
1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.

Shipping
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
1 For fast and safe delivery, we cannot deliver to P.O. Box number. Please provide physical address and contact phone number.
2 Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility with your country's customs office to estimate what these additional costs will be prior to buying.
3 Transit time varies with different shipping methods.

OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your inquiries!

Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it free of charge.
1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.
2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.

Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.

Why Choose Wardmay Ltd ?

1) We are super professional. We have Customized high-end Cabin Camera products for our clients with two pins DC connectors

2) We have strong technologies and R & D team in China.

3) We have Strict QC: Every product sent to customer will be tested for 48 hours,24hours half products,and 24hours full product testing. The RMA rate is almost Zero.

4) We take responsibility: Every issue about our products will get our highly attention.We will find a satisfing solution for you in a very short time. If the problem is caused by our company,we will take responsibility for all the losses.

5) Fast delivery: usually within 2-7 business days since payment arrived.

6) Professional technical support: in before sale and after sales.

Welcome to test our sample!
