Product Description

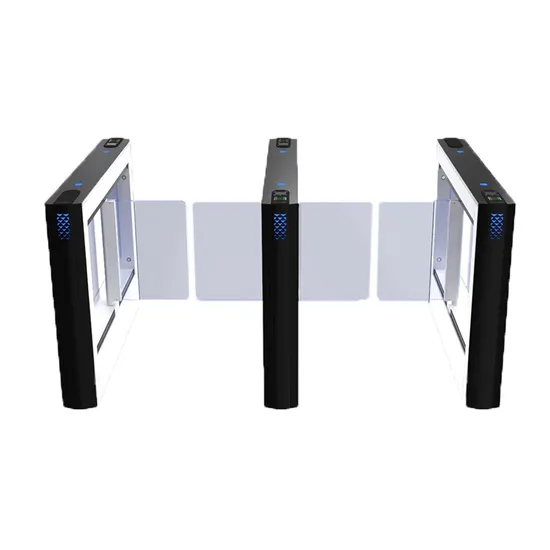

Product Description IM.XS.02 swing barrier gate is a commercial design turnstile equipped with all the latest features to speed up operation.Measuring length 1400*width 166*height 1000mm,it offers a convenient 600~1100mm passage width.With a life span of 8 million times,it is made of stainless steel.This turnstile is designed for maximum security and fast operation.It can easily handle high traffic areas and is an ideal choice for commercial applications.
Product Parameters

Dimensions (Customization Accepted) :	length 1400* width 166* height 1000mm;
Material:	the box corrosion-resistant SPCC 1.0mm, top cover 5mm thick aluminum alloy oxidation, column 3mm thick aluminum alloy oxidation, according to the moisture-proof, dustproof, waterproof international standards design;
Power Supply Voltage:	AC110~220V±10%, 50Hz;
Drive Motor:	brushless drive motor 24V,6 pairs of IR sensors;
Working Environment Temperature:	-30ºC ~ +70ºC;
Relative Humidity:	relative humidity ≤95%, no condensation;
Input Interface:	Dry contact; 12V level signal or pulse width > 100ms 12V pulse signal, drive current: > 200mA;
Communication Interface:	RS485 electrical standard;
Channel Width:	≤1110mm;
Traffic Speed:	≤30 people/minute;
Passing direction:	support one-way and two-way (optional);
Working Environment:	indoor, outdoor;
Expandable Functions:	can be connect to to peripheral ID, IC card, fingerprint recognition, face recognition, finger vein recognition, two-dimensional code recognition, ID card recognition, mobile APP opening, human integrated anti-static equipment, security gate, visitor system, etc.

Product Freatures Voice alam:it has the function of entering and opening the gate/exiting the gate/breaking in voice/
trailing voice/stop voice alarm function
Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which
can be linked with other alarm monitoring equipment
Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors
Traffic mode setting:One-way traffic,two-way traffic,free traffic,etc.can be set through the buttons on the
main control panel
Anti tailing:prevent the unauthorized situation of too many people at one time
Anti pinch function:When the gate is in the process of closing,the gate will stop closing after detecting the
anti-pinch signal
Automatic reset:after opening the gate,if the user does not pass within the specified time,the system will
automatically cancel the user's permission to pass this time;The default is 10 seconds,and the traffic time
can be set through the switch
Access control:External port can connect a variety of biometric devices
Power off and opening:switch off after power off,and the switch opening direction can be set
Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and
handling faults and abnormalities
Passing indication:with passing status indicator;It can also set the alarm function of exceeding the stay
time in the channel
Company Profile EBO-TECH's service network covers more than 300 cities across China, with its business expanding to Southeast Asia, including Malaysia, and countries along the Belt and Road Initiative. Its projects span commercial sectors, office buildings, transportation hubs, charging stations, and residential communities. Notable locations include the Wangfujing business district, SKP shopping mall, Hong Kong West Kowloon Plaza, Tianfu International Airport, Huaxi Hospital, Hongya Cave Scenic Area, Longmen Grottoes, Wanda Plaza, Rainbow Group, Suzhou Jiaotou, Changsha City Investment, JLL, Shanghai Gubei Property, Hong Kong Wharf Group, and many more. Over a thousand key clients and tens of thousands of parking lots across the country have chosen EBO-TECH's products and services.
EBO-TECH's team upholds the values of "Integrity, Responsibility, Progress, and Cooperation" and adheres to the mission of becoming the "most trusted partner for customers. " EBO-TECH is dedicated to improving the management of every parking lot, making car owners' travel experiences more enjoyable, and ensuring that every car owner, and every parking space, feels secure and satisfied thanks to EBO-TECH's services.
