Ktl Tilling Depth 90mm Light Rotary Tiller for Small Tractor

Product Description

Product Description

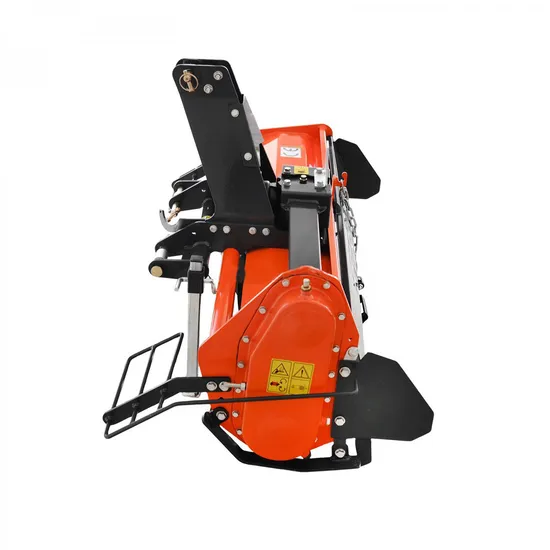

KTL Tilling Depth 90mm Light Rotary Tiller for Small Tractor
TLK rotary tiller is suitable for soil preparation, in the vineyard, nursery, orchard, and for gardening. aluminium alloy gearbox, with offset function, side chain drive in oil bath, automatic chain tensioner, 4 spiral blades per flange,adjustable skids to obtain the desired working depth, adjustabke rear shield ensures best ground levelling, universal three-point hitch, cardan shaft support, CE safety guards.
Product Parameters

MODEL	KTL-85	KTL-95	KTL-105
DIMENSIONS(L*W*H)	950*675*750mm	1150*675*750mm	1250*675*750mm
STRUCTURE WEIGHT	155Kg	175Kg	195Kg
TILLING WIDTH	0.8m	0.9m	1.0m
TILLING DEPTH	90mm	90mm	90mm
WORKING EFFICIENCY	1300-2100m2/h	1500-2200m2/h	1700-2300m2/h
PTO TURNNING SPEED	540r/min	540r/min	540r/min
PTO SPLINE	6*8*700mm	6*8*700mm	6*8*700mm
POWER REQUIRED	12-20HP	12-20HP	15-22HP

MODEL	KTL-115	KTL-125	KTL-135
DIMENSIONS(L*W*H)	1350*675*750mm	1400*675*750mm	1550*675*750mm
STRUCTURE WEIGHT	215Kg	235Kg	255Kg
TILLING WIDTH	1.1m	1.2m	1.3m
TILLING DEPTH	90mm	90mm	90mm
WORKING EFFICIENCY	1900-2400m2/h	2100-2500m2/h	2300-2600m2/h
PTO TURNNING SPEED	540r/min	540r/min	540r/min
PTO SPLINE	6*8*700mm	6*8*700mm	6*8*700mm
POWER REQUIRED	15-22HP	18-22HP	18-22HP

Detailed Photos
Company Profile
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China.
Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on (30 series and more than 200 models). Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America, Europe,Asia, etc. We get a good reputation from the worldwide customers.
FAQ
Q1. what's your main products? A: Our products are covered almost all farm machines. Q2: How long is the delivery date? A: In general, we can ship the goods within 30-45days after receiving your payment. Q3. Do you have after-sales service? A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality. Q4. Can you print my brand name on it? A: Of course, you just need to send us the picture of your brand. Q5. what's your payment term? Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L. Q6. Can I mix different models together? A: Yes, you can mix different products or models in a container and we will try our best to use the container place. Q7. what your terms of payment? A:T/T, L/C, and western union

---
